BTF60702ERVXUMA1 - Infineon

Description: Current Limit SW 2-IN 2-OUT -0.3V to 7V 3A Automotive 14-Pin TDSO EP T/R

Download BTF60702ERVXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

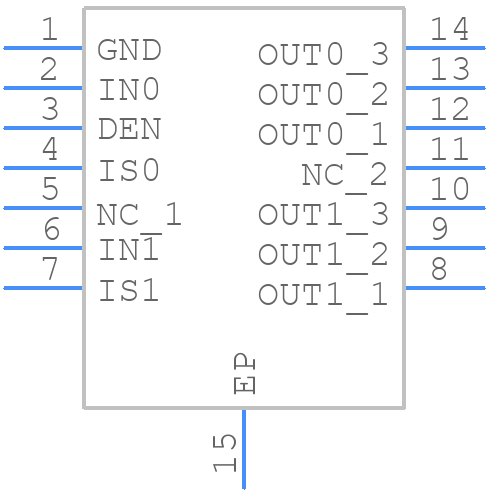

Symbol
BTF60702ERVXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
BTF60702ERVXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-TDSO-141) (Plastic Dual Small Outline Package)
click to zoom
3D Models
BTF60702ERVXUMA1 - Infineon - 3D model - Small Outline Packages - PG-TDSO-141) (Plastic Dual Small Outline Package)
click to zoom

BTF60702ERVXUMA1 Details

  • Manufacturer Part Number:

    BTF60702ERVXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TDSO-14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    2A

  • Terminal Finish:

    Tin (Sn)

BTF60702ERVXUMA1 Frequently Asked Questions (FAQs)

  • Infineon recommends a 2-layer or 4-layer PCB with a thermal via array under the device to improve heat dissipation. A minimum of 10 thermal vias with a diameter of 0.3 mm is recommended.
  • Ensure proper heat sinking, use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/mK, and consider using a heat sink with a thermal resistance of less than 10 K/W.
  • The maximum allowed voltage on the VCC pin is 5.5 V. Exceeding this voltage may damage the device.
  • Check the voltage supply, ensure proper connections, and verify that the enable pin (EN) is properly configured. Also, check for any short circuits or damage to the device.
  • Infineon recommends using a human body model (HBM) ESD protection of at least 2 kV and a charged device model (CDM) ESD protection of at least 500 V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BTF60702ERVXUMA1 Overview

Use the download button to access the BTF60702ERVXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTF60, or try a keyword search, such as Peripheral Drivers
