Infineon provides a recommended PCB layout and thermal management guide in their application note AN2014-01, which includes guidelines for thermal pad connection, heat sink design, and PCB layout considerations to ensure optimal performance and thermal dissipation.
The BTH500151LUAAUMA1 has built-in overcurrent protection, but it's recommended to implement additional external fault detection and protection circuits to ensure reliable operation. Infineon's application note AN2015-05 provides guidance on implementing overcurrent protection and fault detection for this device.
Infineon recommends using a dedicated gate drive IC, such as the 1EDC or 2EDC family, to ensure optimal switching performance and minimize electromagnetic interference (EMI). The recommended gate drive circuits and components are described in Infineon's application note AN2014-02.
To ensure EMC and reduce EMI, follow Infineon's guidelines for PCB layout, component selection, and shielding in their application note AN2015-03. Additionally, consider using EMI filters, such as the Infineon's XMC4500 filter, to reduce EMI emissions.
The BTH500151LUAAUMA1 has a maximum junction temperature of 150°C. For high-temperature operation, thermal derating is necessary to ensure reliable operation. Infineon provides thermal derating guidelines in their application note AN2014-01, which includes temperature-dependent current ratings and power dissipation limits.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BTH500151LUAAUMA1 Overview

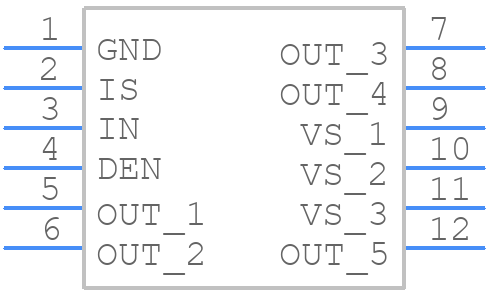

Use the download button to access the BTH500151LUAAUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTH50,
or try a keyword search, such as Peripheral Drivers
