Infineon provides a recommended PCB layout and thermal management guide in their application note AN2019-01. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and to prevent overheating.
The BTM7700G has built-in overcurrent protection and fault detection features. However, to implement these features, you need to use external components and programming. Infineon provides examples and guidelines in their application note AN2019-02 and the device's programming manual.
The maximum allowed voltage drop across the BTM7700G is typically around 1.5V to 2V, depending on the specific application and operating conditions. Exceeding this voltage drop can lead to reduced performance, increased power losses, and potentially even damage to the device. It's essential to ensure that the voltage drop is within the recommended range to maintain optimal performance.
Infineon provides guidelines for selecting external components in their application note AN2019-01 and the device's datasheet. The selection of components depends on the specific application, operating frequency, and power requirements. It's essential to follow these guidelines to ensure optimal performance and reliability.
The thermal impedance and junction-to-case thermal resistance of the BTM7700G are typically around 1.5°C/W and 0.5°C/W, respectively. These values are critical for thermal management and can be found in the device's datasheet or application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BTM7700G Overview

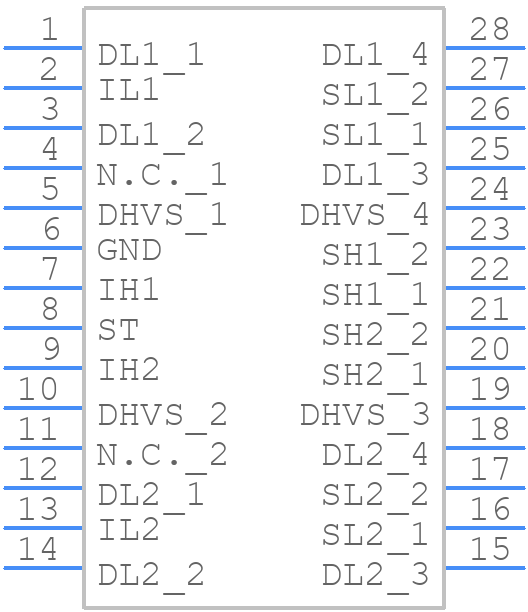

Use the download button to access the BTM7700G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTM77,
or try a keyword search, such as Peripheral Drivers
