BTM7710G - Infineon

Description: Motor / Motion / Ignition Controllers & Drivers TrilithIC QUAD D-MOS SWITCH DRIVER

Download BTM7710G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

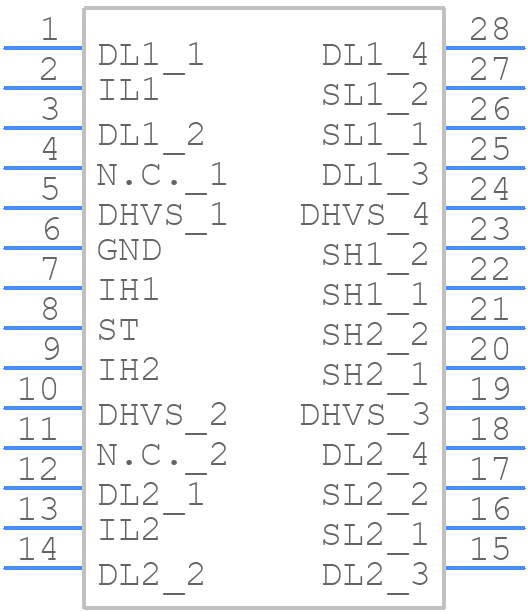

BTM7710G - Infineon - PCB symbol
click to zoom
PCB Footprints
BTM7710G - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - P-DSO-28-14
click to zoom
3D Models
BTM7710G - Infineon - 3D model - Small Outline Packages - P-DSO-28-14
click to zoom

BTM7710G Details

  • Manufacturer Part Number:

    BTM7710G

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, 28 PIN

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Driver Number of Bits:

    4

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G28

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    28

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Current-Max:

    0.002 A

  • Output Peak Current Limit-Nom:

    15 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Surface Mount:

    YES

  • Technology:

    MOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED
