BTM7710GXUMA1 - Infineon

Description: INFINEON - BTM7710GXUMA1 - Half Bridge Driver, 4.5V to 42V supply, 1 Output, SOIC-28

Download BTM7710GXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

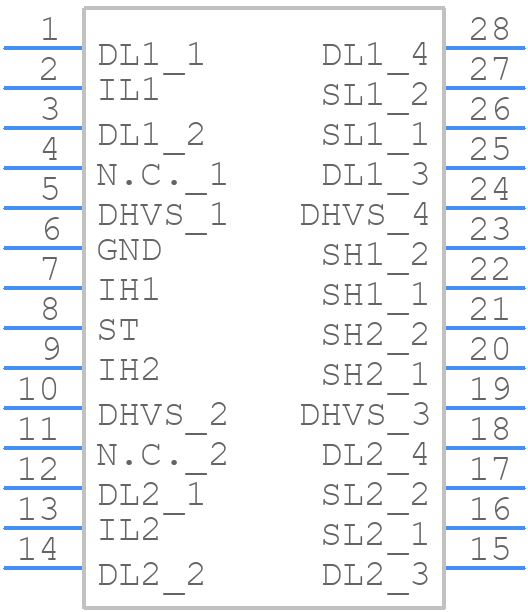

BTM7710GXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
BTM7710GXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-28-22
click to zoom
3D Models
BTM7710GXUMA1 - Infineon - 3D model - Small Outline Packages - PG-DSO-28-22
click to zoom

BTM7710GXUMA1 Details

  • Manufacturer Part Number:

    BTM7710GXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, 28 PIN

  • Pin Count:

    28

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    48 Weeks, 4 Days

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    28

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    15 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

BTM7710GXUMA1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to ensure efficient heat dissipation.
  • Use a heat sink or thermal pad, and ensure good airflow around the device. Also, consider using a thermal interface material (TIM) to improve heat transfer between the device and heat sink.
  • The maximum allowed voltage on the input pins is 5.5V, but it's recommended to keep it below 5V to ensure reliable operation and prevent damage to the device.
  • Check the power supply voltage, ensure proper connections, and verify that the enable pin is properly configured. Also, check for any short circuits or damage to the device or PCB.
  • Yes, the BTM7710GXUMA1 is designed for high-reliability applications and meets various safety standards, including AEC-Q100 and IEC 61508. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific requirements of your application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BTM7710GXUMA1 Overview

Use the download button to access the BTM7710GXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTM77, or try a keyword search, such as Peripheral Drivers
