BTN70301EPAXUMA1 - Infineon

Description: Motor/Motion/Ignition Controllers & Drivers

Download BTN70301EPAXUMA1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this BTN70301EPAXUMA1 model

Email notifications will be applied after download.

Send part feedback

Symbol

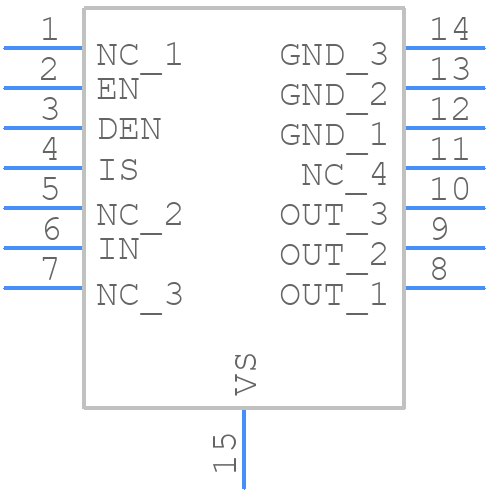

BTN70301EPAXUMA1 - Infineon - PCB symbol

PCB Footprints

BTN70301EPAXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-TSDSO-14

3D Models

BTN70301EPAXUMA1 - Infineon - 3D model - Small Outline Packages - PG-TSDSO-14

Datasheet Download Datasheet
Stock & Prices Price & Stock for BTN70301EPAXUMA1
Part Number BTN70301EPAXUMA1
Manufacturer Infineon
Pin Count 15
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PG-TSDSO-14
Released Date May 8, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

BTN70301EPAXUMA1 Details

Manufacturer Part Number:
BTN70301EPAXUMA1
Manufacturer:
Infineon Technologies AG

Trust Checks

Community Provided

System Verified

Community Approved

BTN70301EPAXUMA1 Overview

Use the download button to access the BTN70301EPAXUMA1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like BTN70, or try a keyword search, such as MOSFET Drivers
