BTN8960TA - Infineon

Description: BTN8960TA High Current PN Half Bridge NovalithIC

Download BTN8960TA Model

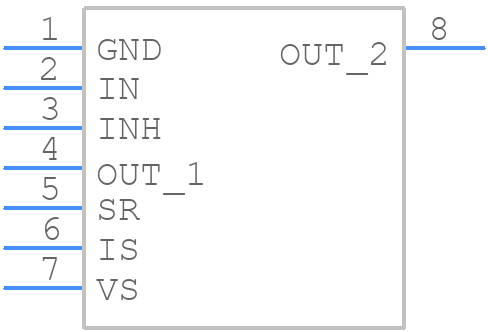

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

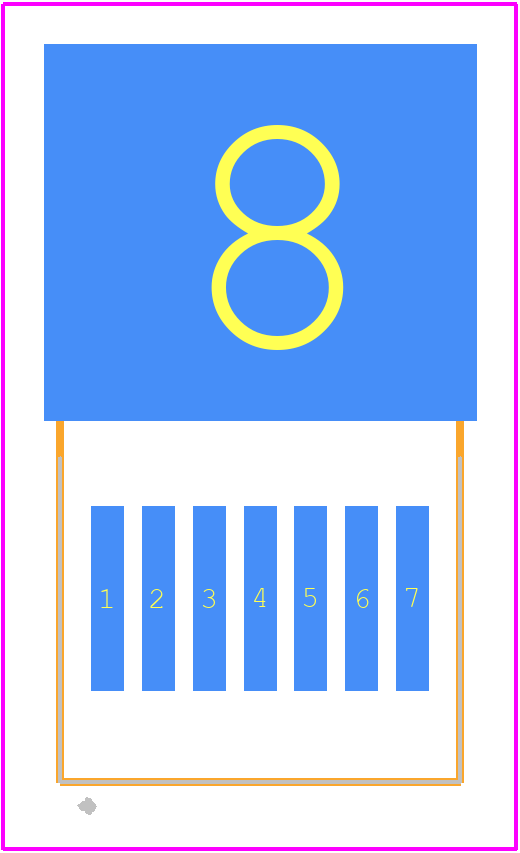

BTN8960TA - Infineon PCB footprint - Other - Other - BTN8960TA-2
click to zoom
3D Models
BTN8960TA - Infineon  - 3D model - Other - BTN8960TA-2
click to zoom

BTN8960TA Details

  • Manufacturer Part Number:

    BTN8960TA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    D2PAK

  • Package Description:

    GREEN, PLASTIC, TO-263, 7 PIN

  • Pin Count:

    4

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    SEATED HGT-NOM; SEATED HGT-CALCULATED

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    42 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-263

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    4.5 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Turn-off Time:

    23 µs

  • Turn-on Time:

    34 µs

  • Width:

    9.25 mm

BTN8960TA Frequently Asked Questions (FAQs)

  • The BTN8960TA can operate from -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of less than 10 K/W, and ensuring good airflow around the device. Additionally, the PCB design should allow for good thermal conduction.
  • A recommended PCB layout for the BTN8960TA includes a symmetrical layout, with the device placed near the center of the board. The power traces should be wide and short, and the decoupling capacitors should be placed close to the device.
  • Overvoltage protection can be achieved by using a voltage regulator or a TVS diode. Overcurrent protection can be achieved by using a current sense resistor and a comparator or an overcurrent protection IC.
  • The recommended gate drive voltage for the BTN8960TA is between 10V and 15V, with a maximum voltage of 20V.
