Part Image

BTN8982TA - Infineon

Description: Half Bridge Driver DC Motors, General Purpose DMOS PG-TO263-7-1

Download BTN8982TA Model

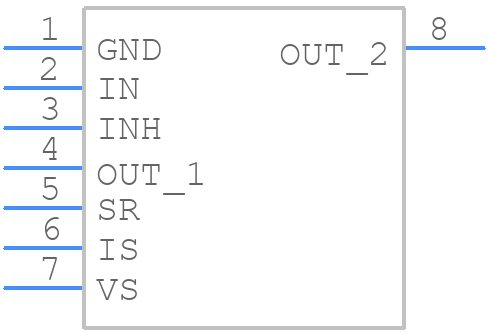

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

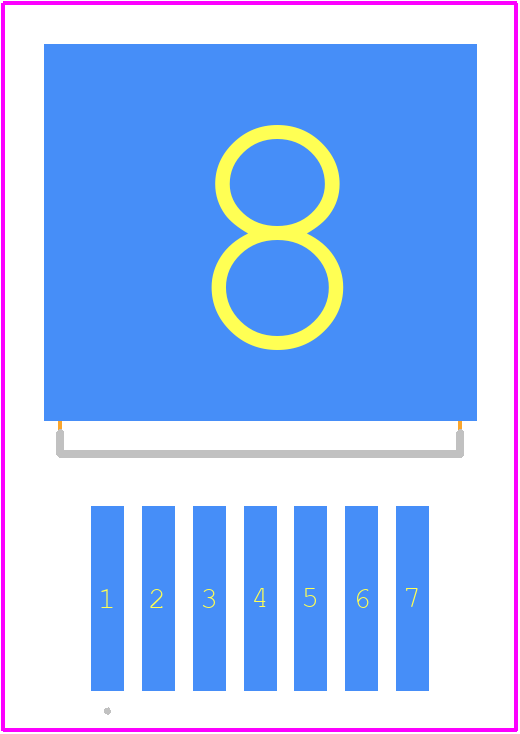

BTN8982TA - Infineon PCB footprint - Other - Other - PG-TO263-7-1-2026
click to zoom
3D Models
BTN8982TA - Infineon  - 3D model - Other - PG-TO263-7-1-2026
click to zoom

BTN8982TA Details

  • Manufacturer Part Number:

    BTN8982TA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO-263, 7 PIN

  • Country Of Origin:

    Austria, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Additional Feature:

    EXTENDED SUPPLY VOLTAGE=5.5V TO 40V

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-263

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    4.5 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Width:

    9.25 mm

BTN8982TA Frequently Asked Questions (FAQs)

  • The BTN8982TA can operate in a temperature range of -40°C to 150°C, making it suitable for automotive and industrial applications.
  • The BTN8982TA has a thermal pad on the bottom of the package, which should be connected to a heat sink or a thermal interface material to ensure proper cooling. Additionally, the PCB design should allow for good airflow and thermal conduction.
  • The recommended PCB layout for the BTN8982TA involves placing the device near the power source, using wide traces for power and ground, and minimizing the distance between the device and the load. A 4-layer PCB with a solid ground plane is recommended.
  • The BTN8982TA has built-in overvoltage protection (OVP) and undervoltage protection (UVP) features. However, additional protection can be achieved by using external voltage regulators, TVS diodes, or varistors to protect against voltage transients and surges.
  • The BTN8982TA has a maximum current rating of 100A, making it suitable for high-current applications such as automotive and industrial systems.
