BTN8982TAAUMA1 - Infineon

BTN8982TAAUMA1 Details

• Manufacturer Part Number:

  BTN8982TAAUMA1

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

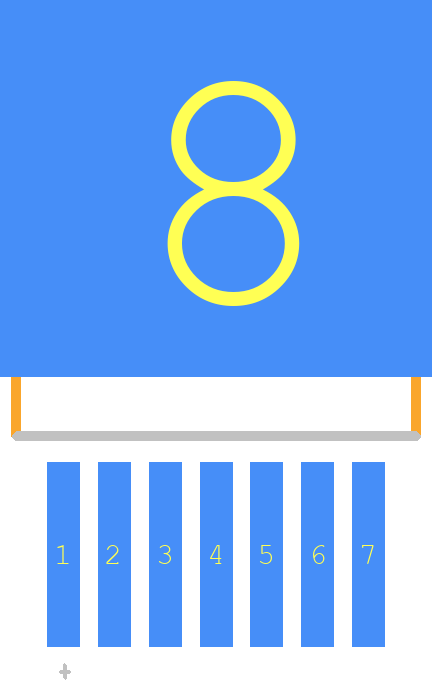

• Package Description:

  TO-263, 7 PIN

• Country Of Origin:

  Austria, Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  53 Weeks, 1 Day

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  6

• Additional Feature:

  EXTENDED SUPPLY VOLTAGE= 5.5V TO 40V

• Built-in Protections:

  TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE

• Driver Number of Bits:

  1

• Input Characteristics:

  STANDARD

• Interface IC Type:

  HALF BRIDGE BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PSSO-G7

• JESD-609 Code:

  e3

• Length:

  10 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  7

• Output Characteristics:

  TOTEM-POLE

• Output Current Flow Direction:

  SOURCE AND SINK

• Output Peak Current Limit-Nom:

  77 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TO-263

• Package Equivalence Code:

  SMSIP7H,.55,50TB

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  4.5 mm

• Supply Current-Max:

  3.3 mA

• Supply Voltage-Max:

  18 V

• Supply Voltage-Min:

  8 V

• Supply Voltage-Nom:

  13.5 V

• Surface Mount:

  YES

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  SINGLE

• Turn-off Time:

  21 µs

• Turn-on Time:

  36 µs

• Width:

  9.25 mm
