BTS282ZE3180AATMA2 - Infineon

Description: MOSFET N-ch + Tsensor 49V 36A TO263-7

Download BTS282ZE3180AATMA2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BTS282ZE3180AATMA2 - Infineon - PCB symbol
click to zoom
PCB Footprints

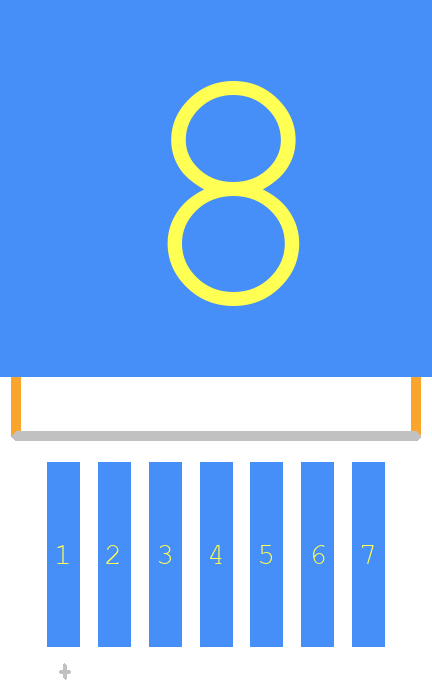

BTS282ZE3180AATMA2 - Infineon PCB footprint - Other - Other - PG-TO263-7-1
click to zoom
3D Models
BTS282ZE3180AATMA2 - Infineon - 3D model - Other - PG-TO263-7-1
click to zoom

BTS282ZE3180AATMA2 Details

  • Manufacturer Part Number:

    BTS282ZE3180AATMA2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    GREEN, PLASTIC, TO-263, 7 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    AVALANCHE RATED

  • Avalanche Energy Rating (Eas):

    2000 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE AND TEMPERATURE SENSOR

  • DS Breakdown Voltage-Min:

    49 V

  • Drain Current-Max (ID):

    80 A

  • Drain-source On Resistance-Max:

    0.0095 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    320 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
