BTS3035EJXUMA1 - Infineon

Description: Power Switch ICs - Power Distribution HITFET

Download BTS3035EJXUMA1 Model
Schematic
symbols

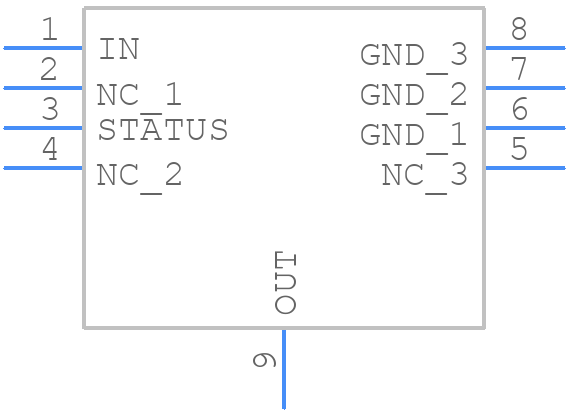

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BTS3035EJXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-TDSO-8-31-1
click to zoom
3D Models
BTS3035EJXUMA1 - Infineon  - 3D model - Small Outline Packages - PG-TDSO-8-31-1
click to zoom

BTS3035EJXUMA1 Details

  • Manufacturer Part Number:

    BTS3035EJXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TDSO-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6.98

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL

  • Driver Number of Bits:

    1

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.15 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    6 V

  • Supply Voltage1-Nom:

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    210 µs

  • Turn-on Time:

    115 µs

  • Width:

    3.9 mm

BTS3035EJXUMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BTS3035EJXUMA1 is -40°C to 150°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of ≤ 10 K/W, and ensuring good airflow around the device.
  • A recommended PCB layout for the BTS3035EJXUMA1 includes a solid ground plane, short and wide traces for power and signal lines, and a decoupling capacitor close to the device.
  • Protection from overvoltage and overcurrent can be achieved by using a voltage regulator, a current limiter, and a fuse in the power supply line.
  • The recommended gate resistor value for the BTS3035EJXUMA1 is between 10 Ω and 100 Ω, depending on the specific application and switching frequency.
