BTS3205GXUMA1 - Infineon

Description: Power Switch ICs - Power Distribution HITFET SMART LOW SIDE

Download BTS3205GXUMA1 Model

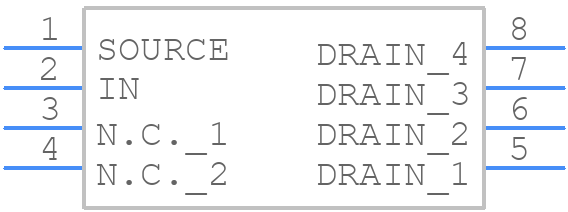

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BTS3205GXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - BTS3205GXUMA1
click to zoom
3D Models
BTS3205GXUMA1 - Infineon  - 3D model - Small Outline Packages - BTS3205GXUMA1
click to zoom

BTS3205GXUMA1 Details

  • Manufacturer Part Number:

    BTS3205GXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6.98

  • Built-in Protections:

    TRANSIENT; OVER VOLTAGE; THERMAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    0.52 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    45 µs

  • Turn-on Time:

    38 µs

  • Width:

    4 mm

BTS3205GXUMA1 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a thermal via array underneath the device is recommended. The thermal vias should be connected to a solid copper plane on the bottom layer to dissipate heat efficiently.
  • The BTS3205GXUMA1 requires a stable 5V supply voltage and a bias current of 10mA to 20mA. Ensure the voltage regulator is capable of providing a low-noise, low-ripple output, and decouple the supply lines with 10uF and 100nF capacitors.
  • The maximum allowed parasitic inductance in the power path is 10nH. Exceeding this value may cause oscillations or instability in the device. Use short, wide traces and minimize vias to reduce inductance.
  • Use a TVS diode or a zener diode to clamp overvoltages, and consider adding a fuse or a PPTC resettable fuse to protect against overcurrent. Ensure the protection components are rated for the maximum expected voltage and current.
  • The BTS3205GXUMA1 is rated for operation from -40°C to 150°C. However, the device's performance and reliability may degrade if operated outside the recommended temperature range of -20°C to 125°C.
