BTS409L1E3062AAUMA1 footprint, schematic symbol and 3D model by Infineon

Symbol

click to zoom

PCB Footprints

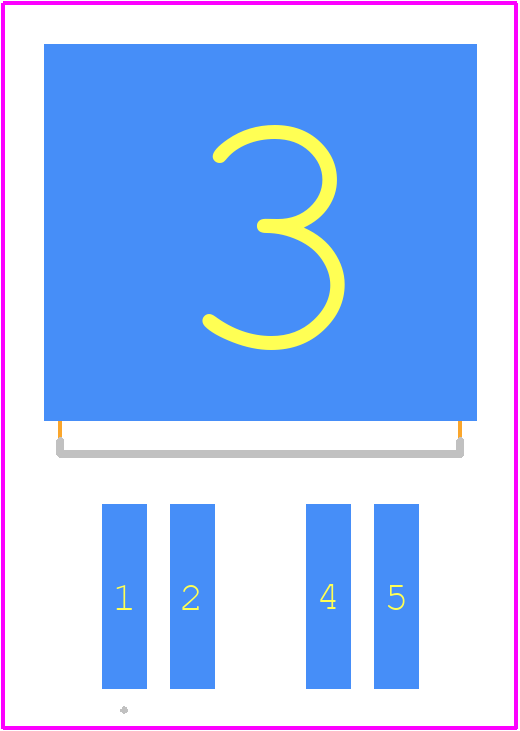

BTS409L1E3062AAUMA1 - Infineon PCB footprint - Other - Other - PG-TO263-5-2_2026-2.2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BTS409L1E3062AAUMA1
Part Number BTS409L1E3062AAUMA1
Manufacturer Infineon
Pin Count 5
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - PG-TO263-5-2_2026-2.2
Released Date Mar 24, 2026
Last Modified Date Mar 24, 2026 10:25 AM UTC
Pinout / Pin List Click Here (Member Only)

BTS409L1E3062AAUMA1 Details

Manufacturer Part Number:
BTS409L1E3062AAUMA1
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
20 Weeks
Manufacturer:
Infineon Technologies AG
YTEOL:
8
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
Moisture Sensitivity Level:
3

BTS409L1E3062AAUMA1 Frequently Asked Questions (FAQs)

Infineon provides a recommended PCB layout in their application note AN215-D, which includes guidelines for thermal pad design, copper thickness, and via placement to ensure optimal thermal performance.
Infineon provides a component selection guide in their application note AN215-D, which includes recommendations for external components such as resistors, capacitors, and inductors based on the specific application requirements.
The SOA limits for the BTS409L1E3062AAUMA1 are not explicitly stated in the datasheet, but can be obtained by contacting Infineon's technical support or by using their online SOA calculator tool.
Infineon recommends using an external current sense resistor and a comparator or a dedicated overcurrent protection IC to implement overcurrent protection for the BTS409L1E3062AAUMA1.
Infineon provides a recommended soldering profile in their application note AN215-D, which includes guidelines for temperature, time, and peak temperature to ensure reliable solder joints.

Trust Checks

Community Provided

System Verified

Community Approved

BTS409L1E3062AAUMA1 Overview

Use the download button to access the BTS409L1E3062AAUMA1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like BTS40, or try a keyword search, such as Peripheral Drivers
