Infineon provides a recommended PCB layout in their application note AN2013-01, which includes guidelines for thermal pad design, copper thickness, and via placement to ensure optimal thermal performance.
When selecting a gate driver for the BTS40K21EJCXUMA1, consider the driver's output current capability, voltage rating, and propagation delay. Infineon recommends using a gate driver with a high current capability (> 2A) and a low propagation delay (< 50ns) to ensure reliable switching.
Monitor the device's junction temperature (TJ), drain-source voltage (VDS), and drain current (ID) to ensure reliable operation. Additionally, monitor the gate-source voltage (VGS) to prevent over-voltage stress.
To ensure EMC, follow Infineon's guidelines for PCB layout, component placement, and shielding. Use a common-mode choke and a Y-capacitor to filter out electromagnetic interference (EMI). Also, consider using a shielded enclosure and a ferrite bead to reduce EMI radiation.
The BTS40K21EJCXUMA1 is designed to meet the reliability requirements of automotive and industrial applications. Infineon provides a reliability report that outlines the device's expected lifetime and failure rates under various operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BTS40K21EJCXUMA1 Overview

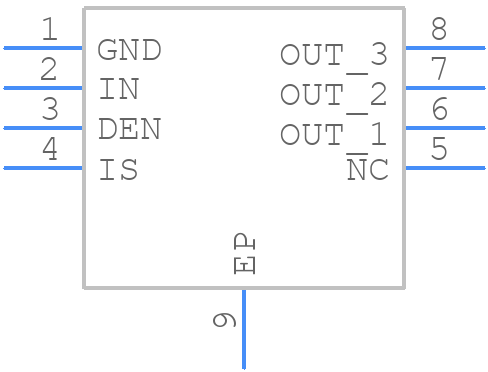

Use the download button to access the BTS40K21EJCXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTS40,
or try a keyword search, such as Peripheral Drivers
