BTS410F2E3062ABUMA1 - Infineon

BTS410F2E3062ABUMA1 Details

• Manufacturer Part Number:

  BTS410F2E3062ABUMA1

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

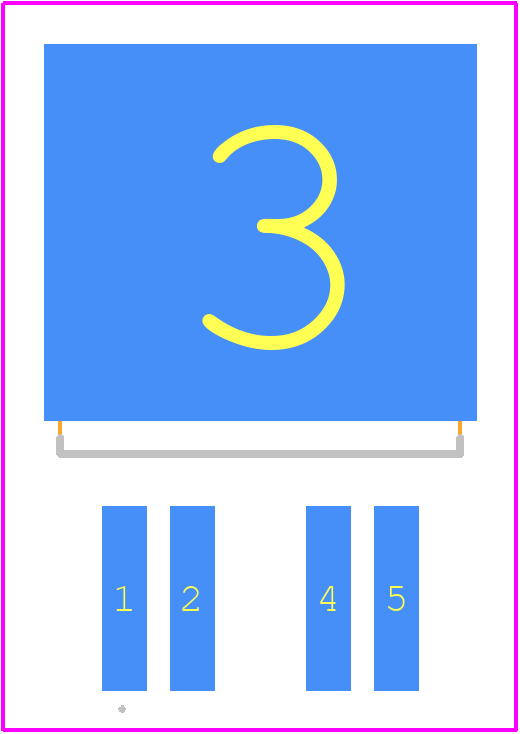

  GREEN, PLASTIC, TO-263, 5/4 PIN

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  0

• Additional Feature:

  SEATED HGT-NOM; SEATED HGT-CALCULATED

• Built-in Protections:

  TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

• Driver Number of Bits:

  1

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PSSO-G4

• JESD-609 Code:

  e3

• Length:

  10 mm

• Number of Functions:

  1

• Number of Terminals:

  4

• Output Current Flow Direction:

  SINK

• Output Peak Current Limit-Nom:

  1.8 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TO-263

• Package Equivalence Code:

  SMSIP5H,.6,67TB

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  4.5 mm

• Supply Voltage-Max:

  42 V

• Supply Voltage-Min:

  4.7 V

• Supply Voltage-Nom:

  12 V

• Surface Mount:

  YES

• Technology:

  MOS

• Terminal Finish:

  TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.7 mm

• Terminal Position:

  SINGLE

• Turn-off Time:

  85 µs

• Turn-on Time:

  125 µs

• Width:

  9.25 mm
