BTS4130QGA - Infineon

Description: Infineon BTS4130QGA, Quad Intelligent Power Switch, High Side, 1.8A, 20V, 20-Pin, DSO

Download BTS4130QGA Model

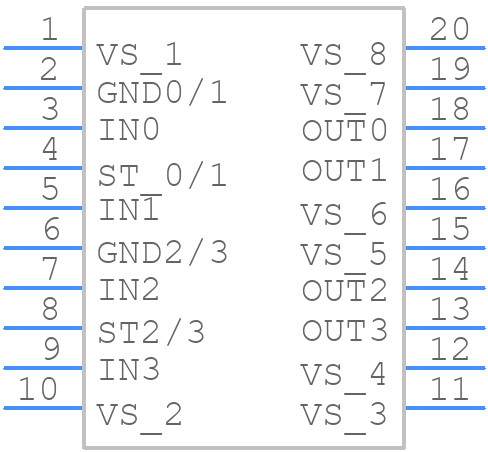

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BTS4130QGA - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-20-32
click to zoom
3D Models
BTS4130QGA - Infineon  - 3D model - Small Outline Packages - PG-DSO-20-32
click to zoom

BTS4130QGA Details

  • Manufacturer Part Number:

    BTS4130QGA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Indonesia, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    14

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    4

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    1.1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    270 µs

  • Turn-on Time:

    250 µs

  • Width:

    7.6 mm

BTS4130QGA Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BTS4130QGA is -40°C to 150°C, but it's recommended to operate within -40°C to 125°C for optimal performance and reliability.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of ≤ 10 K/W, and ensuring good airflow around the device. Additionally, the PCB design should allow for good thermal conduction and radiation.
  • The recommended PCB layout for the BTS4130QGA involves using a 4-layer PCB with a solid ground plane, and placing the device close to the power source. The layout should also minimize parasitic inductances and ensure good decoupling of the power supply.
  • Overvoltage protection can be achieved by using a voltage clamp or a zener diode, while overcurrent protection can be achieved by using a current sense resistor and a comparator. Additionally, the device has built-in overtemperature protection.
  • The recommended gate drive voltage for the BTS4130QGA is between 10V and 15V, with a minimum rise and fall time of 10ns to ensure proper switching.
