BTS4175SGA - Infineon

Description: BTS4175SGA Infineon, Analogue Switch Single 4:1, 52 V, 8-Pin DSO

Download BTS4175SGA Model

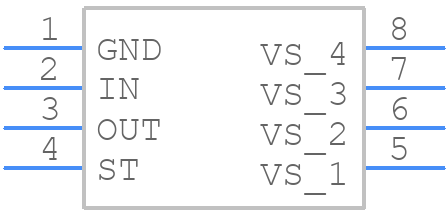

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BTS4175SGA - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - SOIC_8
click to zoom
3D Models
BTS4175SGA - Infineon  - 3D model - Small Outline Packages - SOIC_8
click to zoom

BTS4175SGA Details

  • Manufacturer Part Number:

    BTS4175SGA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    14

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    1.3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Max:

    52 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    200 µs

  • Turn-on Time:

    180 µs

  • Width:

    4 mm

BTS4175SGA Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BTS4175SGA is -40°C to 150°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of ≤ 10 K/W, and ensuring good airflow around the device.
  • A recommended PCB layout for the BTS4175SGA includes a solid ground plane, short and wide traces for power and signal lines, and a heat sink pad for thermal dissipation.
  • Overvoltage protection can be achieved using a voltage regulator or a zener diode, while overcurrent protection can be achieved using a current sense resistor and a comparator.
  • The recommended gate drive voltage for the BTS4175SGA is between 10V and 15V, with a maximum gate-source voltage of 20V.
