BTS4300SGAXUMA1 - Infineon

Description: INFINEON - BTS4300SGAXUMA1 - IC, SMART HIGH SIDE PWR SW, DSO-8

Download BTS4300SGAXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

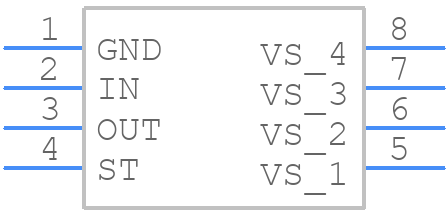

Symbol
BTS4300SGAXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
BTS4300SGAXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-8-24
click to zoom
3D Models
BTS4300SGAXUMA1 - Infineon - 3D model - Small Outline Packages - PG-DSO-8-24
click to zoom

BTS4300SGAXUMA1 Details

  • Manufacturer Part Number:

    BTS4300SGAXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6.98

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    0.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    34 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    170 µs

  • Turn-on Time:

    140 µs

  • Width:

    4 mm

BTS4300SGAXUMA1 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the BTS4300SGAXUMA1 can be found in the Infineon application note AN191 'Layout Recommendations for BTS4300' which provides guidelines for optimal PCB design and layout.
  • The selection of external components such as resistors, capacitors, and inductors depends on the specific application and requirements. Infineon provides a component selection guide in the datasheet and application notes, and also offers a web-based component selector tool to help with the selection process.
  • The BTS4300SGAXUMA1 has a thermal pad on the bottom of the package, and Infineon recommends using a thermal interface material (TIM) to improve heat transfer between the device and the PCB. A heat sink or thermal management system may also be required depending on the application and power dissipation.
  • Infineon provides a troubleshooting guide in the application notes and datasheet, which covers common issues and their solutions. Additionally, engineers can use oscilloscopes, logic analyzers, and other diagnostic tools to identify and debug issues with the device.
  • The BTS4300SGAXUMA1 has built-in ESD protection, but it is still important to follow proper ESD handling and storage procedures to prevent damage to the device. Infineon recommends following the guidelines outlined in the datasheet and industry standards such as ANSI/ESD S20.20.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BTS4300SGAXUMA1 Overview

Use the download button to access the BTS4300SGAXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTS43, or try a keyword search, such as Peripheral Drivers
