BTS500101TADATMA2 - Infineon

Description: Power Switch ICs - Power Distribution MULTICHIP PROFET & GD

Download BTS500101TADATMA2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

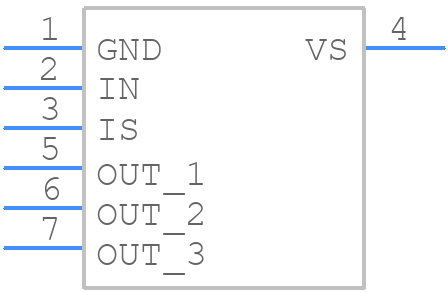

BTS500101TADATMA2 - Infineon - PCB symbol
click to zoom
PCB Footprints
BTS500101TADATMA2 - Infineon PCB footprint - Other - Other - PG‑TO263‑7-10
click to zoom
3D Models
BTS500101TADATMA2 - Infineon - 3D model - Other - PG‑TO263‑7-10
click to zoom

BTS500101TADATMA2 Details

  • Manufacturer Part Number:

    BTS500101TADATMA2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO-263, 7/6 PIN

  • Country Of Origin:

    Germany, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Additional Feature:

    SEATED HGT-NOM

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PSSO-G6

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    48 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-263

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    4.5 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Turn-off Time:

    735 µs

  • Turn-on Time:

    700 µs

  • Width:

    9.25 mm

BTS500101TADATMA2 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BTS500101TADATMA2 is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal design and layout guidelines, and to implement adequate cooling mechanisms to prevent overheating.
  • A recommended PCB layout for minimizing EMI includes using a multi-layer board, placing the BTS500101TADATMA2 near the power source, and using shielding and filtering components to reduce radiation.
  • Yes, the BTS500101TADATMA2 is designed to handle high-voltage applications up to 100V, but it's essential to follow the recommended voltage derating guidelines to ensure safe operation.
  • To troubleshoot issues, start by checking the power supply, PCB layout, and thermal design. Use oscilloscopes and thermal imaging tools to identify the root cause of the issue, and consult the datasheet and application notes for guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BTS500101TADATMA2 Overview

Use the download button to access the BTS500101TADATMA2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTS50, or try a keyword search, such as Peripheral Drivers
