Technical Content
Part Image

BTS5016-2EKA - Infineon

Description: Power Switch ICs - Power Distribution PROFET

Download BTS5016-2EKA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

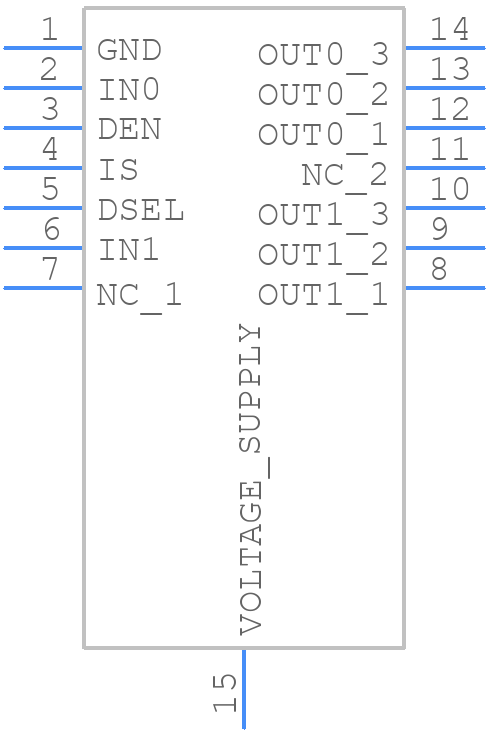

BTS5016-2EKA - Infineon - PCB symbol
click to zoom
PCB Footprints
BTS5016-2EKA - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - BTS5016-2EKA-1
click to zoom
3D Models
BTS5016-2EKA - Infineon - 3D model - Small Outline Packages - BTS5016-2EKA-1
click to zoom

BTS5016-2EKA Details

  • Manufacturer Part Number:

    BTS5016-2EKA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    9

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Terminal Finish:

    Tin (Sn)

BTS5016-2EKA Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BTS5016-2EKA is -40°C to 150°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of ≤ 10 K/W, and ensuring good airflow around the device.
  • A recommended PCB layout for the BTS5016-2EKA includes a solid ground plane, short and wide traces for power and signal lines, and a decoupling capacitor close to the device.
  • Overvoltage protection can be achieved using a voltage clamp or a zener diode, while overcurrent protection can be achieved using a current sense resistor and a comparator.
  • The recommended gate drive voltage for the BTS5016-2EKA is between 10V and 15V, with a maximum gate drive current of 100mA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BTS5016-2EKA Overview

Use the download button to access the BTS5016-2EKA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTS50, or try a keyword search, such as Peripheral Drivers
