BTS50162EKAXUMA1 - Infineon

Description: Power Switch ICs - Power Distribution PROFET

Download BTS50162EKAXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

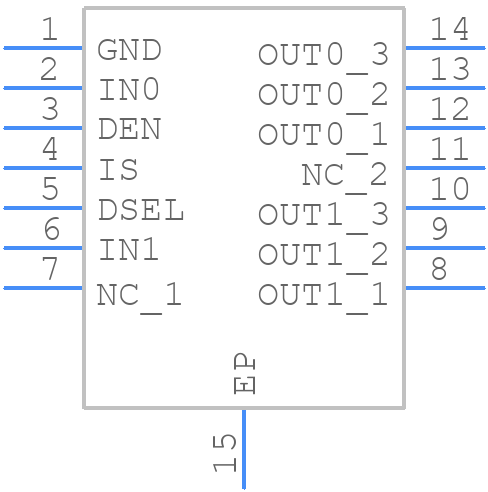

BTS50162EKAXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
BTS50162EKAXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-14-40 E
click to zoom
3D Models
BTS50162EKAXUMA1 - Infineon - 3D model - Small Outline Packages - PG-DSO-14-40 E
click to zoom

BTS50162EKAXUMA1 Details

  • Manufacturer Part Number:

    BTS50162EKAXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Terminal Finish:

    Tin (Sn)

BTS50162EKAXUMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BTS50162EKAXUMA1 is -40°C to 150°C.
  • To ensure EMC, follow the layout and grounding guidelines provided in the datasheet, and use proper shielding and filtering techniques to minimize electromagnetic interference.
  • The recommended PCB layout for the BTS50162EKAXUMA1 is to use a 4-layer PCB with a solid ground plane, and to keep the high-current paths short and wide to minimize voltage drops and electromagnetic interference.
  • To troubleshoot issues with the BTS50162EKAXUMA1, check the power supply voltage, ensure proper grounding, and verify that the input and output pins are not overloaded or short-circuited. Use an oscilloscope to measure the voltage and current waveforms.
  • Yes, the BTS50162EKAXUMA1 is suitable for high-reliability applications, such as automotive and industrial systems, due to its high-quality manufacturing process and rigorous testing procedures.
