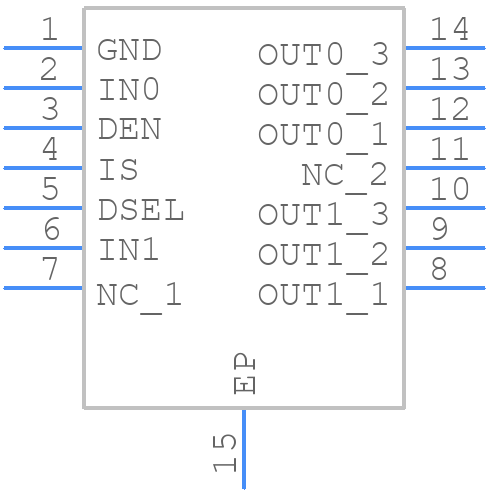

BTS5045-2EKA - Infineon

BTS5045-2EKA Details

• Manufacturer Part Number:

  BTS5045-2EKA

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Package Description:

  4 MM, GREEN, PLASTIC, MS-012BB, SOP-14

• Pin Count:

  14

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  26 Weeks

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  9

• Built-in Protections:

  TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE

• Driver Number of Bits:

  2

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDSO-G14

• JESD-609 Code:

  e3

• Length:

  8.65 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  14

• Output Current Flow Direction:

  SINK

• Output Peak Current Limit-Nom:

  3 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLSOP

• Package Equivalence Code:

  SOP14,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.7 mm

• Supply Voltage-Max:

  18 V

• Supply Voltage-Min:

  8 V

• Supply Voltage-Nom:

  13.5 V

• Supply Voltage1-Max:

  28 V

• Supply Voltage1-Min:

  5 V

• Supply Voltage1-Nom:

  18 V

• Surface Mount:

  YES

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Turn-off Time:

  230 µs

• Turn-on Time:

  230 µs

• Width:

  3.9 mm
