BTS5090-1EJA - Infineon

Description: Smart High-Side Power Switch 3A DSO8 Infineon BTS5090-1EJA Intelligent Power Switch, High Side Power Switch, 3A, 5 → 28V, 8-Pin, DSO-8-43

Download BTS5090-1EJA Model

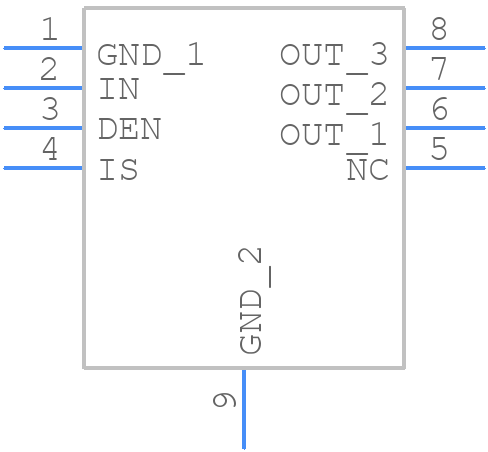

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BTS5090-1EJA - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - BTS5090-1EJA
click to zoom
3D Models
BTS5090-1EJA - Infineon  - 3D model - Small Outline Packages - BTS5090-1EJA
click to zoom

BTS5090-1EJA Details

  • Manufacturer Part Number:

    BTS5090-1EJA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    9

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    13.5 V

  • Surface Mount:

    YES

  • Technology:

    MOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    230 µs

  • Turn-on Time:

    100 µs

  • Width:

    3.9 mm

BTS5090-1EJA Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BTS5090-1EJA is -40°C to 150°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of ≤ 10 K/W, and ensuring good airflow around the device.
  • A recommended PCB layout for minimizing EMI includes using a solid ground plane, keeping high-frequency traces short and away from the device, and using shielding where possible.
  • Yes, the BTS5090-1EJA is qualified for use in high-reliability applications such as automotive and aerospace, and meets relevant industry standards such as AEC-Q100.
  • Troubleshooting issues with the BTS5090-1EJA can be done by checking the device's thermal monitoring and shutdown features, verifying proper PCB layout and cooling, and using diagnostic tools such as oscilloscopes and logic analyzers.
