BTS50901EJAXUMA1 footprint, schematic symbol and 3D model by Infineon

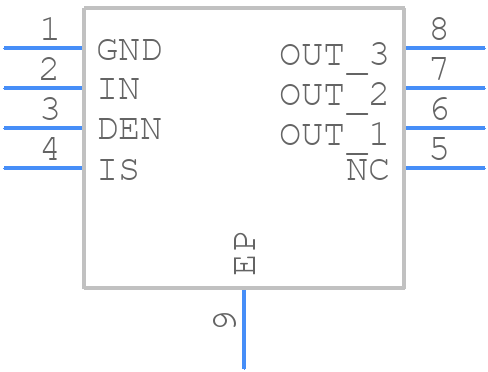

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BTS50901EJAXUMA1
Part Number BTS50901EJAXUMA1
Manufacturer Infineon
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PG-DSO-8
Released Date Jan 20, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

BTS50901EJAXUMA1 Details

Manufacturer Part Number:
BTS50901EJAXUMA1
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SOP-8
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Infineon Technologies AG
YTEOL:
7.05
Built-in Protections:
TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Driver Number of Bits:
1
Input Characteristics:
SCHMITT TRIGGER
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
OPEN-DRAIN
Output Current Flow Direction:
SINK
Output Peak Current Limit-Nom:
3 A
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
HLSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE
Screening Level:
AEC-Q100
Seated Height-Max:
1.7 mm
Supply Current-Max:
6 mA
Supply Voltage-Max:
28 V
Supply Voltage-Min:
5 V
Supply Voltage-Nom:
13.5 V
Surface Mount:
YES
Technology:
MOS
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Turn-off Time:
100 µs
Turn-on Time:
100 µs
Width:
3.9 mm

BTS50901EJAXUMA1 Frequently Asked Questions (FAQs)

The recommended PCB layout for the BTS50901EJAXUMA1 can be found in the Infineon application note AN2013-01, which provides guidelines for PCB design, component placement, and thermal management.
The sense resistor value depends on the maximum current and voltage of the application. A general guideline is to choose a sense resistor value that results in a voltage drop of 50-100 mV at the maximum current. The BTS50901EJAXUMA1 datasheet provides a formula to calculate the sense resistor value.
The maximum junction temperature of the BTS50901EJAXUMA1 is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable operation and to ensure a long lifespan.
Yes, the BTS50901EJAXUMA1 is designed to operate in high-temperature environments. However, it's essential to ensure proper heat sinking and thermal management to prevent overheating. The device can operate up to 150°C, but the maximum ambient temperature is 125°C.
To troubleshoot issues with the BTS50901EJAXUMA1, start by checking the power supply voltage, sense resistor value, and PCB layout. Verify that the device is properly configured and that the input and output pins are not overloaded. Consult the datasheet and application notes for troubleshooting guidelines and FAQs.
