TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G14
JESD-609 Code:
e3
Length:
8.75 mm
Moisture Sensitivity Level:
3
Number of Functions:
2
Number of Terminals:
14
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Output Current Flow Direction:
SINK
Output Peak Current Limit-Nom:
8.5 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP14,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
1.75 mm
Supply Voltage-Max:
40 V
Supply Voltage-Min:
5.5 V
Supply Voltage-Nom:
12 V
Surface Mount:
YES
Technology:
MOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Turn-off Time:
270 µs
Turn-on Time:
250 µs
Width:
4 mm
BTS5210G Frequently Asked Questions (FAQs)
The recommended PCB layout for the BTS5210G involves placing the device close to the battery, using a star-shaped connection for the power lines, and keeping the high-current paths short and wide. A 4-layer PCB with a solid ground plane is recommended.
To ensure proper cooling, the BTS5210G should be mounted on a heat sink with a thermal resistance of less than 10 K/W. The heat sink should be connected to a solid ground plane, and the device should be placed in a well-ventilated area.
The maximum allowed voltage drop across the BTS5210G is 0.5 V. Exceeding this voltage drop may cause the device to overheat or malfunction.
To diagnose and troubleshoot issues with the BTS5210G, check the device's operating conditions, such as voltage, current, and temperature. Use an oscilloscope to monitor the device's output, and check for signs of overheating, such as excessive current consumption or voltage drops.
The BTS5210G is rated for operation up to 150°C, but its performance may degrade at high temperatures. To ensure reliable operation, the device should be derated according to the temperature derating curve provided in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BTS5210G Overview

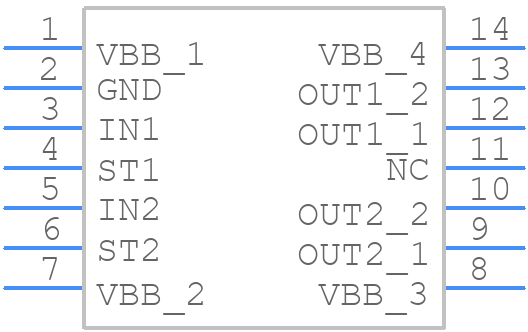

Use the download button to access the BTS5210G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTS52,
or try a keyword search, such as Peripheral Drivers
