BTS5215LAUMA1 - Infineon

Description: Infineon BTS5215LAUMA1, Dual-Channel Intelligent Power Switch, High Speed Switch, 5.5 → 40V 14-Pin, DSO

Download BTS5215LAUMA1 Model

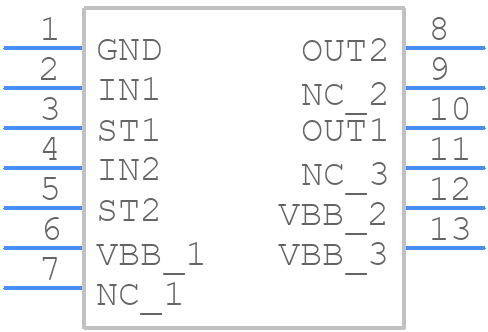

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BTS5215LAUMA1 - Infineon PCB footprint - Other - Other - PG-DSO-12-9
click to zoom
3D Models
BTS5215LAUMA1 - Infineon  - 3D model - Other - PG-DSO-12-9
click to zoom

BTS5215LAUMA1 Details

  • Manufacturer Part Number:

    BTS5215LAUMA1

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOP-12

  • Pin Count:

    12

  • Country Of Origin:

    Indonesia, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    12

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    7.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SOP12,.4,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.6 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    270 µs

  • Turn-on Time:

    250 µs

  • Width:

    6.4 mm

BTS5215LAUMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN215 'Layout Recommendations for BTS5215LAUMA1' which includes guidelines for component placement, routing, and thermal management.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of ≤ 10 K/W, ensuring good thermal contact between the device and heat sink, and providing adequate airflow around the device.
  • The maximum allowed voltage on the VS pin is 35V, but it's recommended to keep it below 30V to ensure reliable operation and to prevent damage to the device.
  • The BTS5215LAUMA1 is rated for operation up to 150°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's current capability and to ensure proper cooling in high-temperature environments.
  • The BTS5215LAUMA1 has built-in overcurrent and overvoltage protection, but additional external protection circuits may be necessary depending on the application. It's recommended to follow the guidelines in the datasheet and application notes for proper protection.
