BTS5241L - Infineon

Description: Power Switch ICs - Power Distribution Smart Hi-Side Pwr SW PROFET 2 Ch

Download BTS5241L Model

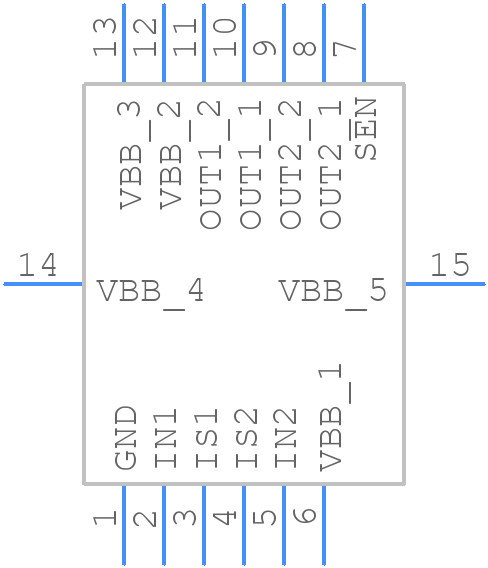

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BTS5241L - Infineon PCB footprint - Other - Other - P-DSO-12-2
click to zoom

BTS5241L Details

  • Manufacturer Part Number:

    BTS5241L

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SOP-12

  • Pin Count:

    12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G12

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    12

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    0.7 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SOP12,.4,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    235

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.6 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    13.5 V

  • Surface Mount:

    YES

  • Technology:

    MOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    250 µs

  • Turn-on Time:

    250 µs

  • Width:

    6.4 mm

BTS5241L Frequently Asked Questions (FAQs)

  • The BTS5241L can operate from -40°C to 150°C, but the maximum junction temperature (Tj) should not exceed 150°C.
  • The BTS5241L has a thermal pad on the bottom of the package, which should be connected to a heat sink or a thermal interface material to ensure proper heat dissipation.
  • A good PCB layout for the BTS5241L should minimize the inductance of the power traces, use a solid ground plane, and keep the high-current paths short and wide. A 4-layer PCB with a dedicated power plane is recommended.
  • The BTS5241L has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, additional external protection circuits may be necessary depending on the application requirements.
  • The BTS5241L has a maximum current rating of 40A, but the actual current handling capability depends on the application conditions, such as the operating temperature, PCB layout, and cooling system.
