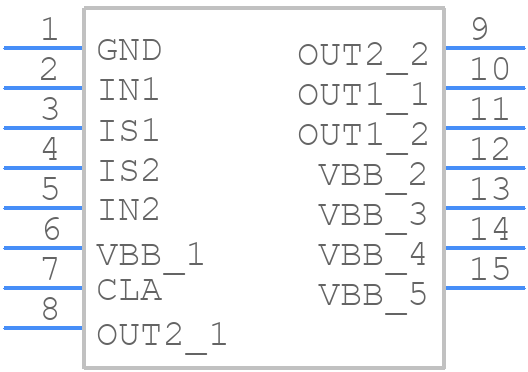

BTS5242-2L - Infineon

BTS5242-2L Details

• Manufacturer Part Number:

  BTS5242-2L

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  GREEN, PLASTIC, SOP-12

• Pin Count:

  12

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  0

• Built-in Protections:

  TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

• Driver Number of Bits:

  2

• Interface IC Type:

  HALF BRIDGE BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDSO-G12

• Length:

  7.5 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  12

• Output Current Flow Direction:

  SINK

• Output Peak Current Limit-Nom:

  4.5 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SOP12,.4,40

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.6 mm

• Supply Voltage-Max:

  28 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  13.5 V

• Surface Mount:

  YES

• Technology:

  MOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1 mm

• Terminal Position:

  DUAL

• Turn-off Time:

  250 µs

• Turn-on Time:

  250 µs

• Width:

  6.4 mm
