BTS640S2GATMA1 - Infineon

Description: Power Switch ICs - Power Distribution SMART SENSE HI-SIDE PWR SWITCH

Download BTS640S2GATMA1 Model

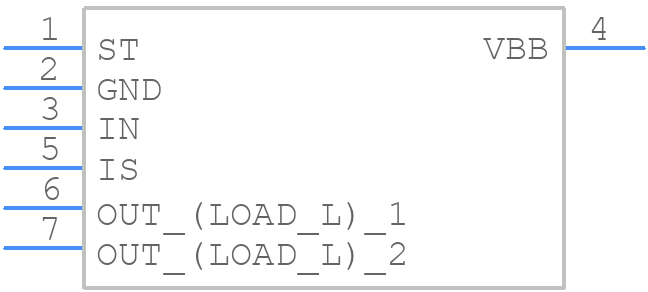

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BTS640S2GATMA1 - Infineon PCB footprint - Other - Other - BTS640S2GATMA1-1
click to zoom

BTS640S2GATMA1 Details

  • Manufacturer Part Number:

    BTS640S2GATMA1

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    D2PAK

  • Package Description:

    PLASTIC, TO-263, 7 PIN

  • Pin Count:

    4

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6.98

  • Built-in Protections:

    OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PSSO-G6

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    19 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-263

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max:

    34 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    MOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Turn-off Time:

    200 µs

  • Turn-on Time:

    150 µs

  • Width:

    9.25 mm

BTS640S2GATMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BTS640S2GATMA1 is -40°C to 150°C.
  • To ensure reliability, it is recommended to follow the thermal design guidelines provided in the datasheet, and to implement proper thermal management, such as heat sinks or thermal interfaces, to keep the device within its specified operating temperature range.
  • The recommended PCB layout for the BTS640S2GATMA1 involves keeping the device away from high-frequency signal lines, using a solid ground plane, and minimizing the length of the power supply lines to reduce EMI.
  • Yes, the BTS640S2GATMA1 is AEC-Q101 qualified, making it suitable for use in automotive applications, such as in power distribution systems, motor control units, and battery management systems.
  • To troubleshoot issues with the BTS640S2GATMA1, check the device's operating conditions, such as voltage, current, and temperature, and verify that the device is properly soldered and mounted. Also, review the application circuit and ensure that it is designed according to the datasheet recommendations.
