BTS6510B footprint, schematic symbol and 3D model by Infineon

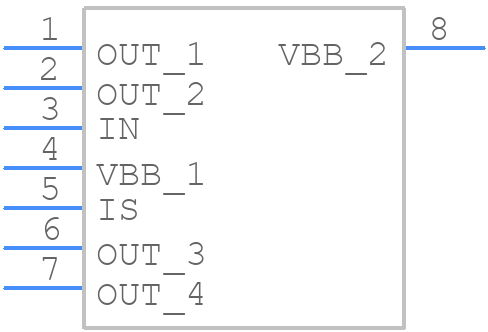

Symbol

click to zoom

PCB Footprints

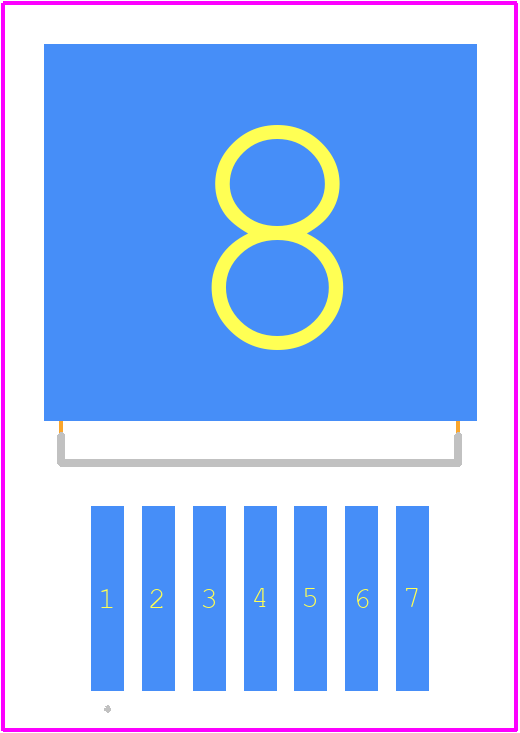

BTS6510B - Infineon PCB footprint - Other - Other - TO 220-7

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BTS6510B
Part Number BTS6510B
Manufacturer Infineon
Pin Count 8
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - TO 220-7
Released Date Mar 17, 2025
Last Modified Date Mar 18, 2025 1:36 PM UTC
Pinout / Pin List Click Here (Member Only)

BTS6510B Details

Manufacturer Part Number:
BTS6510B
Part Life Cycle Code:
Obsolete
Part Package Code:
SFM
Package Description:
TO-220, 7 PIN
Pin Count:
3
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Infineon Technologies AG
YTEOL:
0
Built-in Protections:
TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Driver Number of Bits:
1
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PSSO-G7
Length:
9.9 mm
Number of Functions:
1
Number of Terminals:
7
Output Current Flow Direction:
SOURCE
Output Current-Max:
20 A
Output Peak Current Limit-Nom:
130 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
TO-263
Package Equivalence Code:
SMSIP7H,.55,50TB
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Qualification Status:
Not Qualified
Supply Voltage-Max:
34 V
Supply Voltage-Min:
5 V
Supply Voltage-Nom:
12 V
Surface Mount:
YES
Technology:
MOS
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
SINGLE
Turn-off Time:
200 µs
Turn-on Time:
470 µs
Width:
9.2 mm

BTS6510B Frequently Asked Questions (FAQs)

The BTS6510B can operate in a temperature range of -40°C to 150°C, making it suitable for high-reliability applications.
To ensure EMC, follow proper PCB design guidelines, use a shielded cable for the sense lines, and consider adding a common-mode choke or ferrite bead to the sense lines.
Keep the sense lines as short as possible, use a symmetrical layout, and avoid routing sense lines near noise sources or high-current paths. Use a ground plane to reduce electromagnetic interference.
Calibrate the BTS6510B by applying a known current and adjusting the gain and offset registers to achieve accurate measurement. Use a calibration routine to compensate for temperature and manufacturing variations.
The BTS6510B can measure currents up to 100 A, depending on the specific application and configuration. Consult the datasheet for specific current measurement ranges.
