BTS660P - Infineon

Description: Power Switch ICs - Power Distribution HIC-PROFET

Download BTS660P Model
Schematic

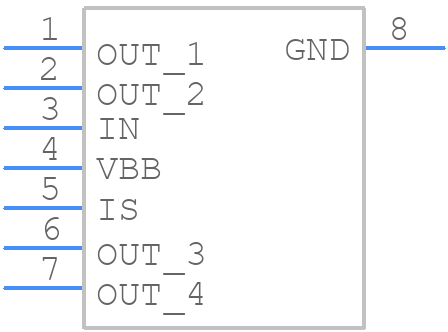

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

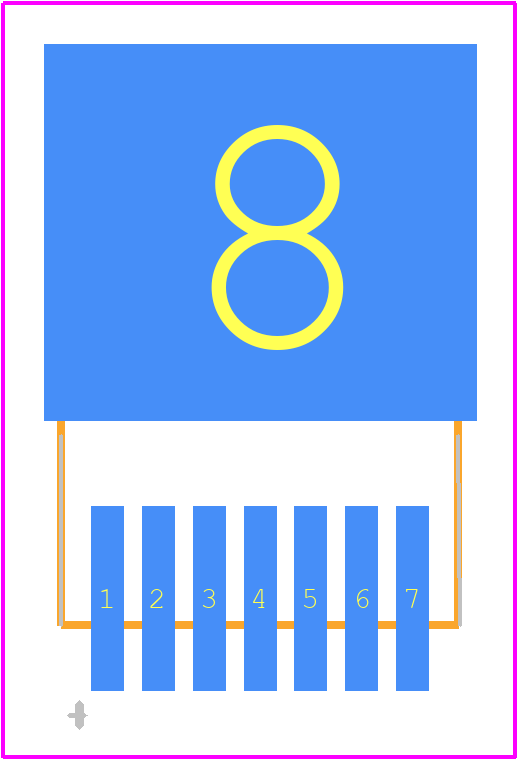

BTS660P - Infineon PCB footprint - Other - Other - BTS660P-1
click to zoom
3D Models
BTS660P - Infineon  - 3D model - Other - BTS660P-1
click to zoom

BTS660P Details

  • Manufacturer Part Number:

    BTS660P

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SFM

  • Package Description:

    TO-220, 7 PIN

  • Pin Count:

    3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PZFM-T7

  • JESD-609 Code:

    e0

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    38 A

  • Output Peak Current Limit-Nom:

    90 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP7,.15,.2TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max:

    58 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    NO

  • Technology:

    MOS

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    ZIG-ZAG

  • Turn-off Time:

    110 µs

  • Turn-on Time:

    400 µs

BTS660P Frequently Asked Questions (FAQs)

  • The BTS660P can operate in a temperature range of -40°C to 150°C, making it suitable for automotive and industrial applications.
  • The BTS660P has a thermal pad on the bottom of the package, which should be connected to a heat sink or a thermal interface material to ensure proper heat dissipation.
  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The PCB should also have a thermal relief pattern under the device to ensure good thermal conductivity.
  • The BTS660P has built-in overvoltage protection, but additional protection circuits may be required depending on the application. Overcurrent protection can be achieved using external current sense resistors and a protection IC.
  • Yes, the BTS660P is qualified according to AEC-Q100, making it suitable for high-reliability applications such as automotive and industrial systems.
