The maximum operating temperature range for the BTS70041EPPXUMA1 is -40°C to 150°C.
To ensure reliability, it is recommended to follow the thermal design guidelines provided in the datasheet, and to implement proper thermal management, such as heat sinks or thermal interfaces, to keep the device within its specified operating temperature range.
The recommended PCB layout for the BTS70041EPPXUMA1 involves keeping the device away from high-frequency signals, using a solid ground plane, and minimizing the length of the power traces to reduce EMI.
To troubleshoot issues with the BTS70041EPPXUMA1, start by checking the power supply voltage, ensuring it is within the specified range. Then, verify that the device is properly configured and that the input signals are within the specified limits. If the issue persists, consult the datasheet and application notes for guidance, or contact Infineon's technical support team.
Yes, the BTS70041EPPXUMA1 is AEC-Q100 qualified, making it suitable for use in automotive applications, such as in power distribution systems, battery management systems, and other high-reliability applications.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BTS70041EPPXUMA1 Overview

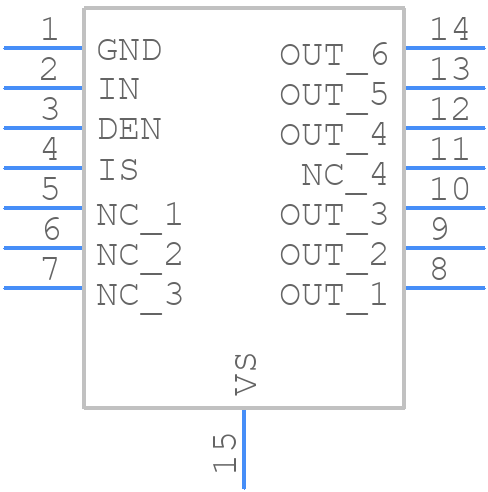

Use the download button to access the BTS70041EPPXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTS70,
or try a keyword search, such as Peripheral Drivers
