BTS70081EPAXUMA1 - Infineon

Description: Power Switch ICs - Power Distribution PROFET

Download BTS70081EPAXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

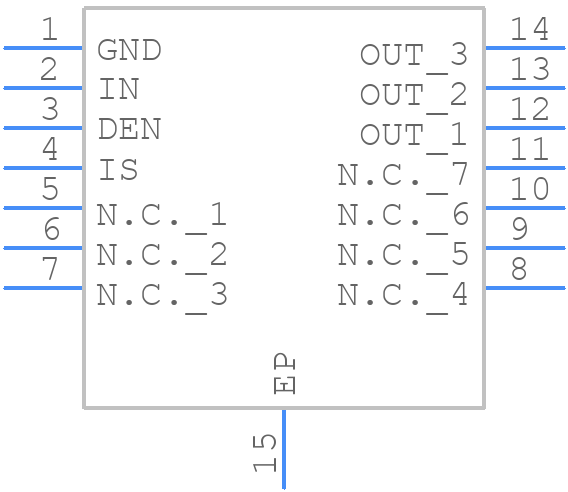

Symbol
BTS70081EPAXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
BTS70081EPAXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-TSDSO-14-22
click to zoom
3D Models
BTS70081EPAXUMA1 - Infineon - 3D model - Small Outline Packages - PG-TSDSO-14-22
click to zoom

BTS70081EPAXUMA1 Details

  • Manufacturer Part Number:

    BTS70081EPAXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Germany, Indonesia, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    2A

  • Terminal Finish:

    Tin (Sn)

BTS70081EPAXUMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for BTS70081EPAXUMA1 is -40°C to 150°C.
  • To ensure EMC, follow the layout and grounding guidelines provided in the datasheet, and use proper shielding and filtering techniques to minimize electromagnetic interference.
  • The recommended PCB layout for BTS70081EPAXUMA1 involves placing the device near the power source, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance.
  • Yes, BTS70081EPAXUMA1 is designed to handle high-voltage applications up to 80V, but ensure proper voltage derating and follow the recommended operating conditions to prevent damage.
  • To troubleshoot issues with BTS70081EPAXUMA1, check the power supply, verify proper PCB layout and grounding, and use oscilloscope measurements to identify voltage and current anomalies.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BTS70081EPAXUMA1 Overview

Use the download button to access the BTS70081EPAXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTS70, or try a keyword search, such as Peripheral Drivers
