BTS70102EPAXUMA1 - Infineon

Description: INFINEON - BTS70102EPAXUMA1 - Power Load Distribution Switch, AECQ100, High Side, Active High, 1 Out, 5.5V, 760mA, 0.12ohm, SSOP-5

Download BTS70102EPAXUMA1 Model
Schematic
symbols

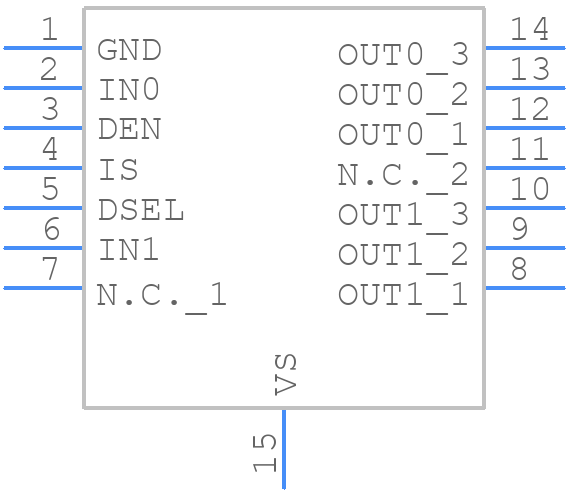

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BTS70102EPAXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-14-2+
click to zoom
3D Models
BTS70102EPAXUMA1 - Infineon  - 3D model - Small Outline Packages - PG-DSO-14-2+
click to zoom

BTS70102EPAXUMA1 Details

  • Manufacturer Part Number:

    BTS70102EPAXUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSDSO-14

  • Country Of Origin:

    Austria, Germany, Indonesia, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    6.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.15 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    100 µs

  • Turn-on Time:

    110 µs

  • Width:

    3.9 mm

BTS70102EPAXUMA1 Frequently Asked Questions (FAQs)

  • Infineon recommends a 2-layer or 4-layer PCB with a thermal via array under the device to ensure good heat dissipation. A minimum of 10 thermal vias with a diameter of 0.3 mm to 0.5 mm is recommended.
  • To ensure EMC, Infineon recommends using a shielded cable for the bus lines, keeping the PCB layout as compact as possible, and using a common mode choke or ferrite bead to filter the bus lines.
  • The maximum allowed voltage on the VS pin is 35 V, but it's recommended to keep it below 24 V to ensure reliable operation.
  • Check the input voltage, ensure the enable pin is high, and verify that the device is not in a fault state. Also, check for any short circuits or overvoltage conditions.
  • Yes, the BTS70102EPAXUMA1 is rated for operation up to 150°C, but the device's performance and reliability may degrade at high temperatures. Ensure proper cooling and thermal management to maintain optimal performance.
