Infineon provides a recommended PCB layout in their application note AN2013-01, which includes guidelines for thermal pad design, copper thickness, and via placement to ensure optimal thermal performance.
Infineon provides a component selection guide in their application note AN2013-02, which includes recommendations for external components such as resistors, capacitors, and inductors based on the specific application requirements.
Infineon recommends following the guidelines in their application note AN2013-03 for EMI filtering and shielding, including the use of common-mode chokes, differential-mode chokes, and shielding techniques to minimize electromagnetic interference.
The BTS70202EPAXUMA1 has built-in overcurrent protection and short-circuit detection features. Refer to the datasheet for details on how to configure and use these features, and consider implementing additional external protection circuits as needed.
The BTS70202EPAXUMA1 has a maximum junction temperature of 150°C. Ensure proper thermal management by providing adequate heat sinking, using thermal interface materials, and following the recommended PCB layout guidelines to minimize thermal resistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BTS70202EPAXUMA1 Overview

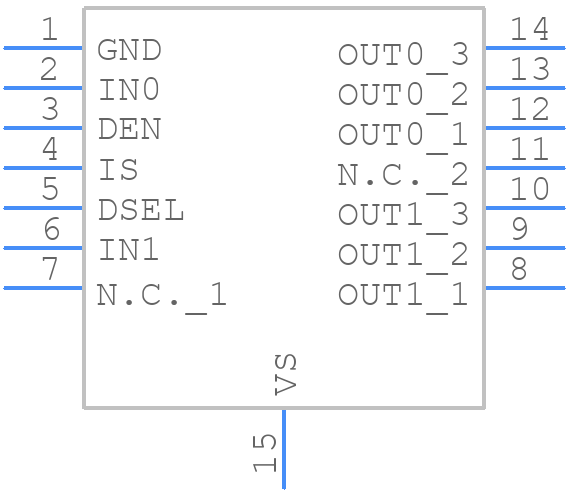

Use the download button to access the BTS70202EPAXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTS70,
or try a keyword search, such as Peripheral Drivers
