BTS70302EPAXUMA1 footprint, schematic symbol and 3D model by Infineon

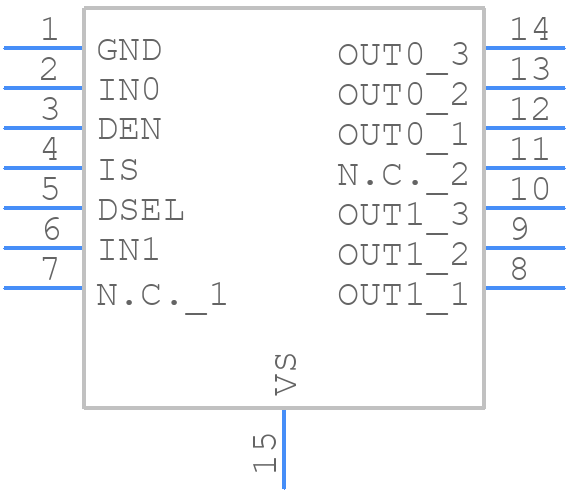

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BTS70302EPAXUMA1
Part Number BTS70302EPAXUMA1
Manufacturer Infineon
Pin Count 15
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PG-TSDSO-14_2021
Released Date Dec 22, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

BTS70302EPAXUMA1 Details

Manufacturer Part Number:
BTS70302EPAXUMA1
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
TSDSO-14
Country Of Origin:
Austria, Germany, Indonesia, Mainland China, Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
26 Weeks
Manufacturer:
Infineon Technologies AG
YTEOL:
7
Built-in Protections:
TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G14
JESD-609 Code:
e3
Length:
4.9 mm
Moisture Sensitivity Level:
2A
Number of Functions:
1
Number of Terminals:
14
Output Current Flow Direction:
SINK
Output Peak Current Limit-Nom:
4.5 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Screening Level:
AEC-Q100
Seated Height-Max:
1.15 mm
Supply Voltage-Max:
18 V
Supply Voltage-Min:
6 V
Supply Voltage-Nom:
13.5 V
Surface Mount:
YES
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Turn-off Time:
100 µs
Turn-on Time:
110 µs
Width:
3.9 mm

BTS70302EPAXUMA1 Frequently Asked Questions (FAQs)

Infineon provides a recommended PCB layout in the application note AN2015-01, which includes guidelines for component placement, routing, and thermal management.
The BTS70302EPAXUMA1 has a thermal pad on the bottom of the package. Ensure good thermal contact between the thermal pad and a heat sink or a thermal interface material. Also, follow the thermal management guidelines in the datasheet and application notes.
The maximum allowed voltage on the input pins is 40V, but it's recommended to keep the input voltage below 35V to ensure reliable operation and to prevent damage to the device.
Use external protection devices such as TVS diodes and fuses to protect the BTS70302EPAXUMA1 from overvoltage and overcurrent. Also, follow the guidelines in the datasheet and application notes for overvoltage and overcurrent protection.
The recommended input filter configuration is a pi-filter (C-L-C) or an LC-filter with a common-mode choke. The filter values depend on the specific application and should be optimized for the specific use case.

Trust Checks

Community Provided

System Verified

Community Approved

BTS70302EPAXUMA1 Overview

Use the download button to access the BTS70302EPAXUMA1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like BTS70, or try a keyword search, such as Peripheral Drivers
