BTS711L1 - Infineon

Description: N channel MOSFET switch,BTS711L1 3.6W BTS711L1, Intelligent Power Switch High Side, 7.5A, 16V, 4-channel, 20-Pin, DSO

Download BTS711L1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

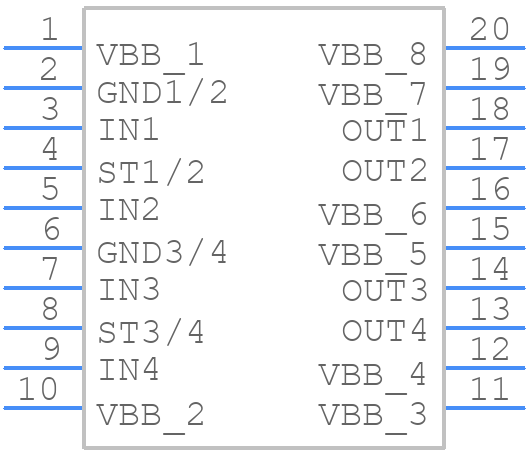

BTS711L1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - GPS05094
click to zoom
3D Models
BTS711L1 - Infineon  - 3D model - Small Outline Packages - GPS05094
click to zoom

BTS711L1 Details

  • Manufacturer Part Number:

    BTS711L1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Indonesia, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    14

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    4

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Current-Max:

    0.01 A

  • Output Peak Current Limit-Nom:

    4.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    34 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    MOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Turn-off Time:

    400 µs

  • Turn-on Time:

    400 µs

  • Width:

    7.6 mm

BTS711L1 Frequently Asked Questions (FAQs)

  • The BTS711L1 can operate in a temperature range of -40°C to 150°C, making it suitable for automotive and industrial applications.
  • To ensure EMC, follow the layout and grounding guidelines provided in the application note, and use a shielded cable for the high-current path. Additionally, consider using a common-mode choke and a ferrite bead to filter out electromagnetic interference.
  • For optimal performance, use a 4-layer PCB with a solid ground plane, and keep the high-current path as short as possible. Use a thermal pad for heat dissipation and ensure good thermal conductivity between the device and the PCB.
  • Use a voltage regulator or a transient voltage suppressor (TVS) to protect the device from overvoltage. For overcurrent protection, use a fuse or a current-sensing resistor with a monitoring circuit to detect overcurrent conditions.
  • A heat sink with a thermal resistance of 2-5 K/W is recommended for the BTS711L1. Ensure good thermal contact between the device and the heat sink using a thermal interface material (TIM).
