Part Image

BTS711L1XUMA1 - Infineon

Description: INFINEON - BTS711L1XUMA1 - Power Load Switch, SIPMOS, High Side, Active High, 4 Outputs, -10 to +16V Input DC, 7.5A, SOP-20

Download BTS711L1XUMA1 Model

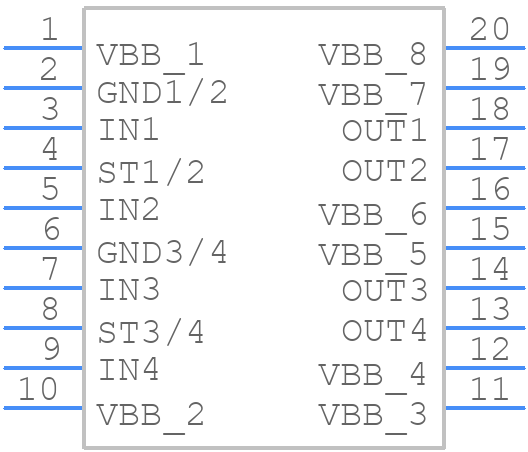

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BTS711L1XUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-20-31
click to zoom
3D Models
BTS711L1XUMA1 - Infineon  - 3D model - Small Outline Packages - PG-DSO-20-31
click to zoom

BTS711L1XUMA1 Details

  • Manufacturer Part Number:

    BTS711L1XUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Indonesia, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7.15

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    4.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    34 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    MOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Turn-off Time:

    400 µs

  • Turn-on Time:

    400 µs

  • Width:

    7.6 mm

BTS711L1XUMA1 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a thermal pad to dissipate heat efficiently.
  • Use a shielded cable for the high-current paths, and ensure a good ground connection between the device and the PCB. Additionally, use a common-mode choke or a ferrite bead to filter out electromagnetic interference (EMI).
  • The maximum allowed voltage drop across the device is 0.5 V. Exceeding this value may lead to reduced performance, increased power dissipation, or even device failure.
  • Use a fuse or a current-limiting resistor in series with the device to prevent overcurrent conditions. For overvoltage protection, use a voltage regulator or a zener diode to clamp the voltage to a safe level.
  • The recommended operating temperature range is -40°C to 150°C. Operating the device outside this range may affect its performance, reliability, or lifespan.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BTS711L1XUMA1 Overview

Use the download button to access the BTS711L1XUMA1 schematic symbol, PCB footprint, and 3D model.
