The maximum operating temperature range for the BTS71202EPAXUMA1 is -40°C to 150°C.
To ensure reliability, it is recommended to follow the thermal design guidelines provided in the datasheet, and to consider using a heat sink or thermal interface material to reduce the junction temperature.
The recommended PCB layout for the BTS71202EPAXUMA1 involves using a multi-layer board with a solid ground plane, and placing the device close to the power source to minimize loop inductance. Additionally, it is recommended to use a shielded cable or a twisted pair cable for the output stage.
To troubleshoot issues with the BTS71202EPAXUMA1, it is recommended to check the input voltage, output current, and junction temperature. Also, verify that the device is properly soldered and that the PCB layout is correct. If the issue persists, contact Infineon's technical support for further assistance.
Yes, the BTS71202EPAXUMA1 is AEC-Q100 qualified, making it suitable for use in automotive applications. However, it is recommended to consult with Infineon's technical support to ensure that the device meets the specific requirements of the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BTS71202EPAXUMA1 Overview

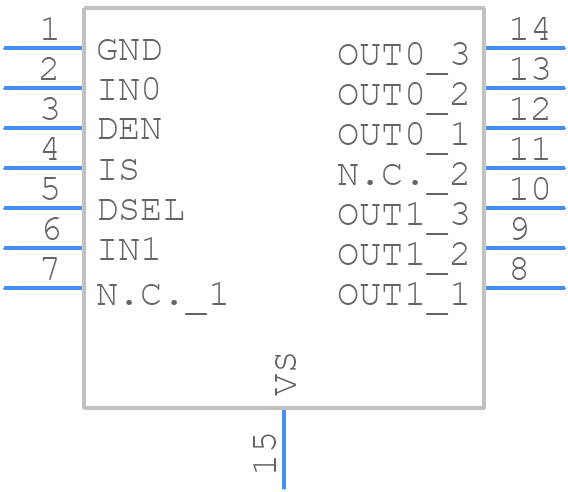

Use the download button to access the BTS71202EPAXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTS71,
or try a keyword search, such as Peripheral Drivers
