BTS712N1 - Infineon

Description: Power Switch ICs - Power Distribution SMART 4-CH HI-SIDE PWR SWITCH

Download BTS712N1 Model
Schematic
symbols

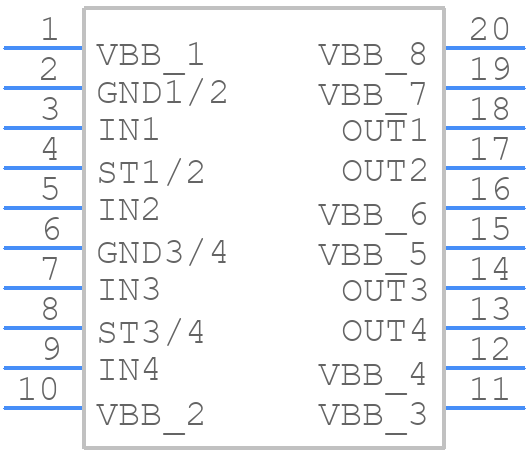

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BTS712N1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-20_2024
click to zoom
3D Models
BTS712N1 - Infineon  - 3D model - Small Outline Packages - PG-DSO-20_2024
click to zoom

BTS712N1 Details

  • Manufacturer Part Number:

    BTS712N1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Indonesia, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    14

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    4

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    1.7 A

  • Output Peak Current Limit-Nom:

    0.3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    34 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    MOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    400 µs

  • Turn-on Time:

    400 µs

  • Width:

    7.6 mm

BTS712N1 Frequently Asked Questions (FAQs)

  • The BTS712N1 can operate in a temperature range of -40°C to 150°C, making it suitable for automotive and industrial applications.
  • The BTS712N1 has a thermal pad on the bottom of the package, which should be connected to a heat sink or a thermal interface material to ensure proper cooling. Additionally, the PCB should be designed to allow for good airflow and heat dissipation.
  • The recommended PCB layout for the BTS712N1 involves placing the device near the power source, using wide traces for the power lines, and keeping the signal lines short and away from the power lines to minimize noise and EMI.
  • The BTS712N1 has built-in overvoltage and overcurrent protection, but additional protection can be added using external components such as TVS diodes and fuses. It's also important to follow proper PCB design and layout guidelines to minimize the risk of overvoltage and overcurrent events.
  • The typical application circuit for the BTS712N1 involves connecting the device to a power source, a load, and a control circuit. The control circuit can be a microcontroller or a dedicated IC that controls the BTS712N1's enable input and monitors its status outputs.
