BTS716G - Infineon

Description: Power Switch ICs - Power Distribution Smart High Side PROFET Quad

Download BTS716G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

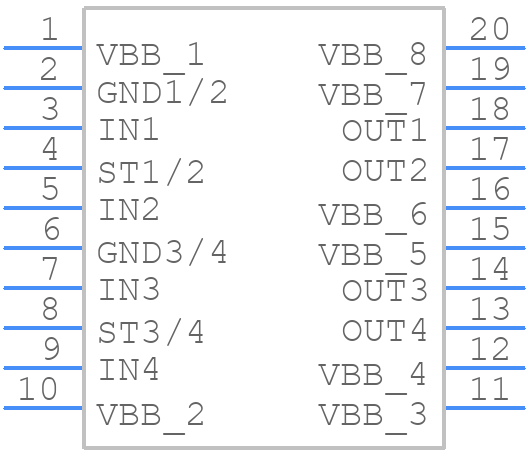

BTS716G - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-20
click to zoom
3D Models
BTS716G - Infineon  - 3D model - Small Outline Packages - PG-DSO-20
click to zoom

BTS716G Details

  • Manufacturer Part Number:

    BTS716G

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Indonesia, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    14

  • Built-in Protections:

    TRANSIENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    4

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    5.3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    MOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    270 µs

  • Turn-on Time:

    250 µs

  • Width:

    7.6 mm

BTS716G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a metal plate to dissipate heat efficiently.
  • Use a TVS (Transient Voltage Suppressor) diode and a fuse or a PPTC (Polymeric Positive Temperature Coefficient) resettable fuse to protect the device from overvoltage and overcurrent conditions.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for input decoupling, placed as close to the device as possible.
  • Use the Infineon Technologies AG's configuration tool or consult the application note to determine the optimal configuration for your specific application.
  • The BTS716G can operate in the temperature range of -40°C to 150°C, but the maximum junction temperature should not exceed 150°C.
