TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Driver Number of Bits:
4
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e3
Length:
12.8 mm
Moisture Sensitivity Level:
3
Number of Functions:
4
Number of Terminals:
20
Output Current Flow Direction:
SINK
Output Current-Max:
0.002 A
Output Peak Current Limit-Nom:
7.3 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP20,.4
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
2.65 mm
Supply Voltage-Max:
40 V
Supply Voltage-Min:
5.5 V
Supply Voltage-Nom:
12 V
Surface Mount:
YES
Technology:
MOS
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Turn-off Time:
270 µs
Turn-on Time:
250 µs
Width:
7.6 mm
BTS724G Frequently Asked Questions (FAQs)
The BTS724G can operate in a temperature range of -40°C to 150°C, making it suitable for automotive and industrial applications.
Infineon provides a configuration tool, the BTS724G Configurator, which helps users to easily configure the device for their specific application. The tool provides a graphical user interface to set up the device's parameters, such as the current sense resistor value, overcurrent protection, and fault detection.
The BTS724G has a maximum current rating of 40A, making it suitable for high-current applications such as electric vehicles, industrial power supplies, and renewable energy systems.
The BTS724G has built-in overvoltage and undervoltage protection, which can be configured to detect and respond to voltage faults. The device can also be configured to provide a warning signal or shut down the system in case of a voltage fault.
Yes, the BTS724G is designed for high-reliability applications, such as automotive and industrial systems, where failure is not an option. The device is built with redundant circuitry and has undergone rigorous testing to ensure its reliability and robustness.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BTS724G Overview

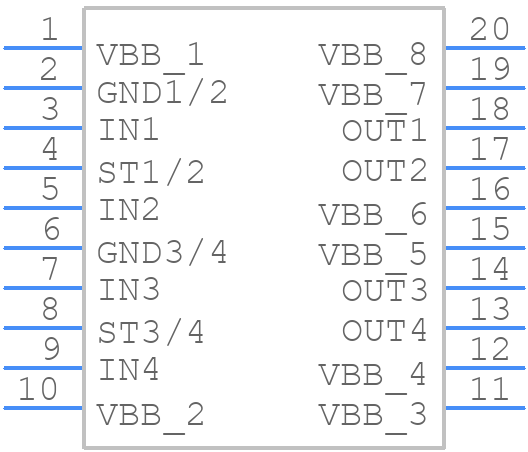

Use the download button to access the BTS724G schematic symbol and PCB footprint.
