BTS724GXUMA1 - Infineon

Description: Infineon BTS724GXUMA1, Quad-Channel Intelligent Power Switch, High Side, 3.3A, 40V 20-Pin, DSO

Download BTS724GXUMA1 Model

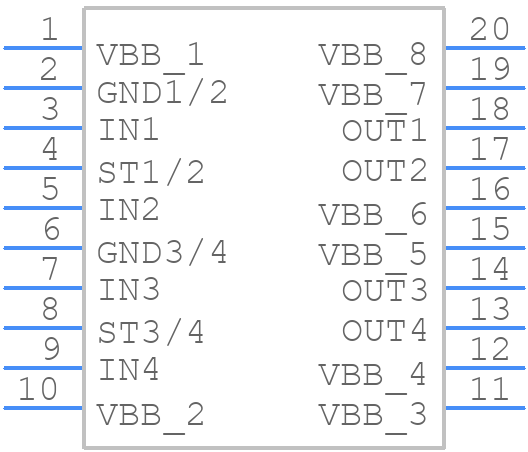

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BTS724GXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-20-31
click to zoom
3D Models
BTS724GXUMA1 - Infineon  - 3D model - Small Outline Packages - PG-DSO-20-31
click to zoom

BTS724GXUMA1 Details

  • Manufacturer Part Number:

    BTS724GXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, DSO-20

  • Pin Count:

    20

  • Country Of Origin:

    Indonesia, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    7.3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    270 µs

  • Turn-on Time:

    250 µs

  • Width:

    7.6 mm

BTS724GXUMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BTS724GXUMA1 is -40°C to 150°C.
  • To ensure EMC, follow the layout and grounding guidelines provided in the datasheet, and use a shielded cable for the high-current path. Additionally, consider using a common-mode choke and a ferrite bead to reduce electromagnetic interference (EMI).
  • The recommended PCB layout for the BTS724GXUMA1 involves placing the device close to the battery, using a star-point connection for the high-current path, and keeping the high-current path as short as possible. Also, ensure that the PCB is designed to handle high currents and has adequate thermal management.
  • To protect the BTS724GXUMA1 from overvoltage and undervoltage conditions, use a voltage regulator or a voltage supervisor to monitor the input voltage and shut down the device if it exceeds the recommended operating range.
  • The recommended cooling system for the BTS724GXUMA1 involves using a heat sink with a thermal interface material (TIM) to dissipate heat. Ensure that the heat sink is properly mounted and has adequate airflow to prevent overheating.
