BTS728L2 - Infineon

Description: IC PWR SWITCH N-CHAN 1:1 PDSO-20 Smart High-Side Power Switch Two Channels: 2 x 60mΩ Status Feedback

Download BTS728L2 Model

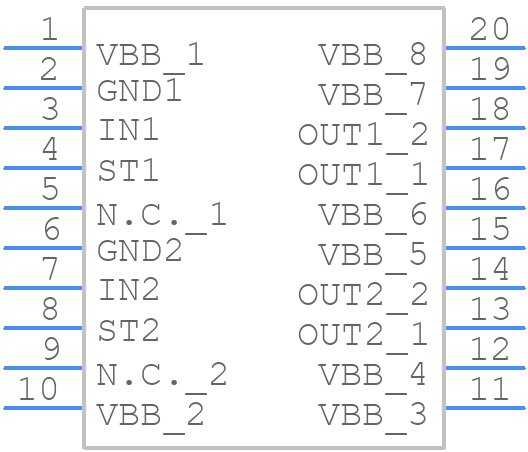

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BTS728L2 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-20
click to zoom
3D Models
BTS728L2 - Infineon  - 3D model - Small Outline Packages - PG-DSO-20
click to zoom

BTS728L2 Details

  • Manufacturer Part Number:

    BTS728L2

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SO-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    3.6 A

  • Output Peak Current Limit-Nom:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    235

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    43 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    MOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    200 µs

  • Turn-on Time:

    200 µs

  • Width:

    7.6 mm

BTS728L2 Frequently Asked Questions (FAQs)

  • The BTS728L2 can operate in a temperature range of -40°C to 150°C, making it suitable for automotive and industrial applications.
  • To ensure EMC, follow the layout and grounding guidelines provided in the application note, and use a shielded cable for the CAN bus interface. Additionally, consider using a common-mode choke and a ferrite bead to filter out electromagnetic interference.
  • The BTS728L2 has a maximum current rating of 2A per channel, making it suitable for high-current applications such as automotive and industrial systems.
  • Yes, the BTS728L2 is designed to operate up to 40V, making it suitable for high-voltage applications such as automotive and industrial systems.
  • Use a logic analyzer or an oscilloscope to monitor the CAN bus signals and verify that the transmission and reception of data packets are correct. Check the power supply voltage and ensure that it is within the recommended range. Also, verify that the device is properly configured and initialized.
