BTS7960B - Rochester Electronics

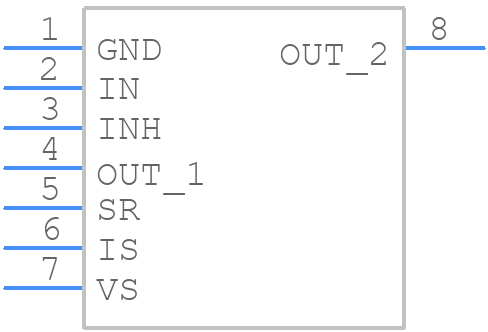

BTS7960B Details

• Manufacturer Part Number:

  BTS7960B

• Pbfree Code:

  No

• Rohs Code:

  No

• Part Life Cycle Code:

  Active

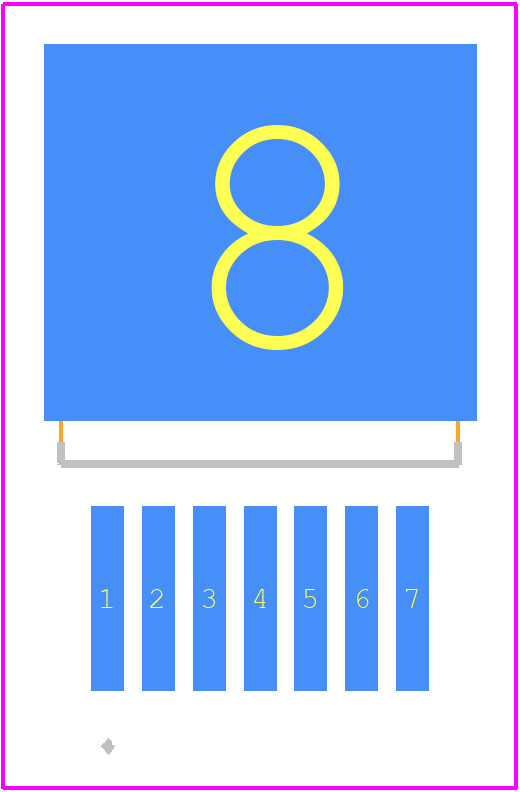

• Part Package Code:

  D2PAK

• Package Description:

  PLASTIC, TO-263, 7 PIN

• Pin Count:

  4

• Reach Compliance Code:

  Unknown

• Manufacturer:

  Rochester Electronics LLC

• Built-in Protections:

  TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

• Interface IC Type:

  HALF BRIDGE BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDSO-G7

• Length:

  9.9 mm

• Moisture Sensitivity Level:

  NOT SPECIFIED

• Number of Functions:

  1

• Number of Terminals:

  7

• Output Current Flow Direction:

  SOURCE AND SINK

• Output Peak Current Limit-Nom:

  62 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TO-263

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  COMMERCIAL

• Supply Voltage-Max:

  27.5 V

• Supply Voltage-Min:

  5.5 V

• Supply Voltage-Nom:

  8 V

• Surface Mount:

  YES

• Technology:

  MOS

• Terminal Finish:

  NOT SPECIFIED

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Turn-off Time:

  16 µs

• Turn-on Time:

  25.4 µs

• Width:

  9.2 mm
