BTT6020-1EKA footprint, schematic symbol and 3D model by Infineon

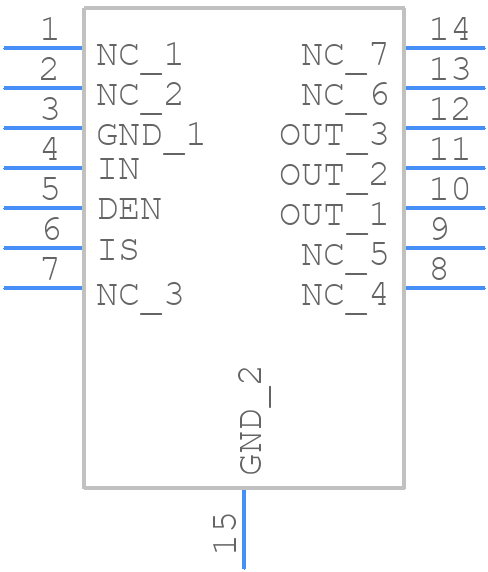

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BTT6020-1EKA
Part Number BTT6020-1EKA
Manufacturer Infineon
Pin Count 15
Part Category MOSFET (N-Channel)
Package Category Small Outline Packages
Footprint Name Small Outline Packages - BTT6020-1EKA-1
Released Date Mar 29, 2019
Last Modified Date Jun 22, 2023 2:40 AM UTC
Pinout / Pin List Click Here (Member Only)

BTT6020-1EKA Details

Manufacturer Part Number:
BTT6020-1EKA
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
SOP-14
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Infineon Technologies AG
YTEOL:
0
Additional Feature:
IT ALSO OPERATE WITH 3.8 TO 5 V SUPPLY
Built-in Protections:
TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Input Characteristics:
STANDARD
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G14
Length:
8.65 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
14
Output Current Flow Direction:
SINK
Output Peak Current Limit-Nom:
7 A
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
HLSOP
Package Equivalence Code:
SOP14,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE
Screening Level:
AEC-Q100
Seated Height-Max:
1.7 mm
Supply Current-Max:
9 mA
Supply Voltage-Max:
48 V
Supply Voltage-Min:
5 V
Supply Voltage-Nom:
8 V
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Turn-off Time:
150 µs
Turn-on Time:
150 µs
Width:
3.9 mm

BTT6020-1EKA Frequently Asked Questions (FAQs)

A 2-layer or 4-layer PCB with a thermal via array underneath the device is recommended. The thermal vias should be connected to a solid copper plane on the bottom layer to dissipate heat efficiently.
Ensure proper heat sinking, use a thermally conductive material for the PCB, and consider using a heat sink or thermal interface material. Also, follow the recommended operating conditions and derating guidelines.
The maximum allowed voltage on the gate driver output is 20V, as specified in the datasheet. Exceeding this voltage may damage the device.
While it's possible to use the BTT6020-1EKA with a different gate driver IC, it's essential to ensure the new gate driver IC meets the recommended specifications and operating conditions to maintain compatibility and reliability.
Start by checking the power supply, gate driver output, and load connections. Verify that the device is operated within the recommended conditions and that the PCB layout is correct. Use an oscilloscope to analyze the gate driver output and load voltage waveforms.
