BTT60502ERAXUMA1 - Infineon

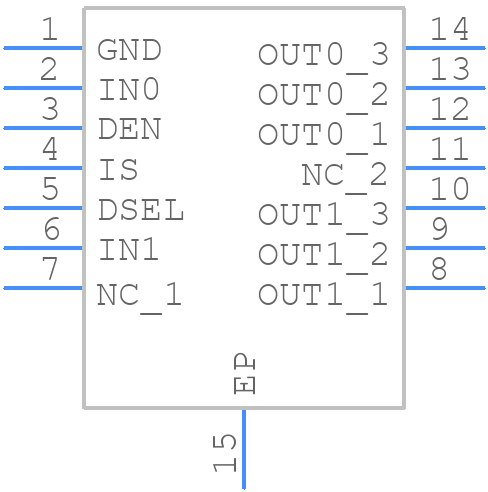

BTT60502ERAXUMA1 Details

• Manufacturer Part Number:

  BTT60502ERAXUMA1

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOP-14

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  7

• Additional Feature:

  ALSO HAS NOM SUPPLY FROM 8V TO 36V AND EXTENDED SUPPLY FROM 5V TO 48V

• Built-in Protections:

  TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

• Driver Number of Bits:

  2

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDSO-G14

• JESD-609 Code:

  e3

• Length:

  8.65 mm

• Moisture Sensitivity Level:

  2A

• Number of Functions:

  2

• Number of Terminals:

  14

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  OPEN-DRAIN

• Output Current Flow Direction:

  SINK

• Output Current-Max:

  12 A

• Output Peak Current Limit-Nom:

  3 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSOP

• Package Equivalence Code:

  SOP14,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.15 mm

• Supply Current-Max:

  12 mA

• Supply Voltage-Max:

  36 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  28 V

• Surface Mount:

  YES

• Technology:

  MOS

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Turn-off Time:

  150 µs

• Turn-on Time:

  150 µs

• Width:

  3.9 mm
