BTT62004EMAXUMA1 - Infineon

Description: Smart High-Side 4-Ch Power Switch SSOP24

Download BTT62004EMAXUMA1 Model

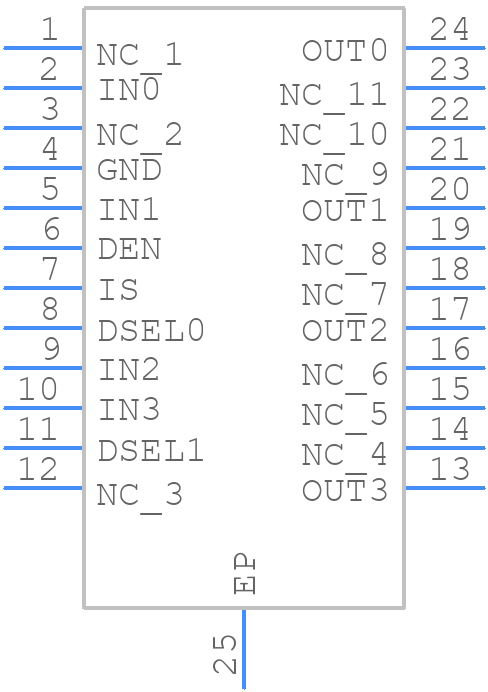

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BTT62004EMAXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-SSOP-24
click to zoom
3D Models
BTT62004EMAXUMA1 - Infineon  - 3D model - Small Outline Packages - PG-SSOP-24
click to zoom

BTT62004EMAXUMA1 Details

  • Manufacturer Part Number:

    BTT62004EMAXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SSOP-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSSOP

  • Package Equivalence Code:

    SSOP24,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    28 V

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    150 µs

  • Turn-on Time:

    150 µs

  • Width:

    3.9 mm

BTT62004EMAXUMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BTT62004EMAXUMA1 is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal design and layout guidelines, and to implement adequate cooling mechanisms to prevent overheating.
  • The recommended PCB layout and design considerations include using a multi-layer PCB, placing the device near the center of the board, and ensuring good thermal conductivity and heat dissipation.
  • To handle ESD protection, it's recommended to follow the standard ESD handling procedures, such as using ESD-safe materials, grounding straps, and wrist straps, and storing the devices in ESD-protective packaging.
  • The recommended soldering and assembly guidelines include using a soldering iron with a temperature range of 220°C to 250°C, and following the recommended soldering times and techniques to prevent damage to the device.
