The recommended torque for the screw terminals is 0.5-1.0 Nm (4.4-8.8 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
The BU-1420701301 is specifically designed for use with 14270 (1/2 AA) lithium-ion batteries. While it may be possible to use it with other similar-sized batteries, it's not recommended as it may not provide a secure fit or optimal performance.
Yes, the BU-1420701301 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in a wide range of applications, including those in the European Union.
The BU-1420701301 is designed to operate within a temperature range of -20°C to 85°C (-4°F to 185°F), making it suitable for use in a variety of environments and applications.
While the BU-1420701301 is designed to be rugged and reliable, it's not specifically designed for high-vibration applications. If you need a battery holder for a high-vibration environment, you may want to consider a different product or consult with Mueller Electric Company's technical support team for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BU-1420701301 Overview

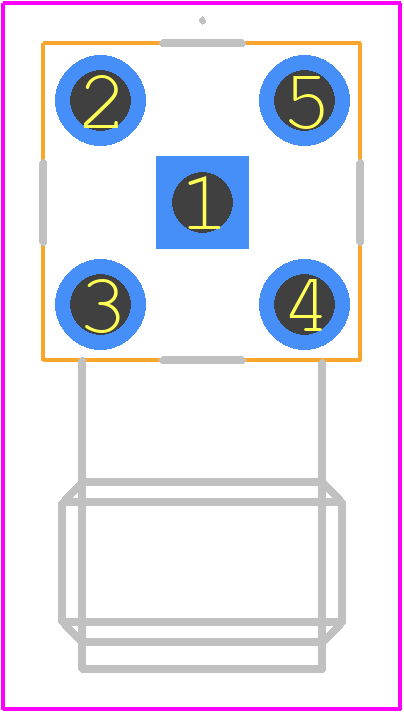

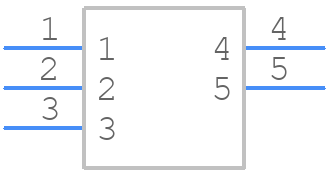

Use the download button to access the BU-1420701301 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like BU-14,
or try a keyword search, such as RF SMA/SSMA Connectors
