ROHM provides a recommended PCB layout in the datasheet, which includes guidelines for pad size, spacing, and thermal vias. It's essential to follow these guidelines to ensure proper heat dissipation and minimize thermal resistance.
Proper thermal management is crucial for the BU12JA2DG-CTR. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout guidelines. Additionally, consider using thermal interface materials and thermal vias to reduce thermal resistance.
The BU12JA2DG-CTR has an operating temperature range of -40°C to 150°C. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Always check the datasheet for specific temperature-related specifications.
While the BU12JA2DG-CTR is a robust device, it's still susceptible to vibration-induced failures. ROHM recommends following proper mounting and soldering techniques to minimize the risk of vibration-related issues. Additionally, consider using vibration-dampening materials or mechanical fastening to secure the device.
Follow ROHM's recommended soldering profile and guidelines to ensure proper soldering. Use a soldering iron with a temperature range of 350°C to 370°C, and avoid applying excessive force or pressure during the soldering process.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BU12JA2DG-CTR Overview

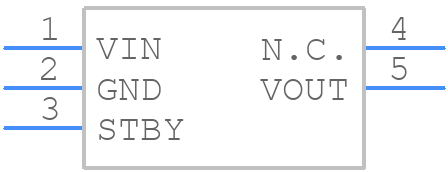

Use the download button to access the BU12JA2DG-CTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BU12J,
or try a keyword search, such as Linear Regulator ICs
